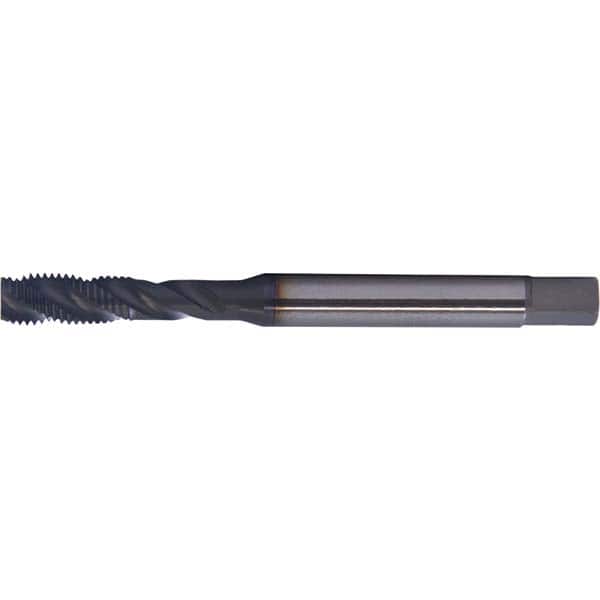

Spiral Flute Tap: M20 x 2.50, DIN, 4 Flute, Modified Bottoming, 6H Class of Fit, Hardlube Finish 2.48″ Thread Length, 5.5118″ OAL, Right Hand Flute, Right Hand Thread, Series PER-980SF
Item #: 18157297
Brand: Cleveland
Model #: C98052
Product Specifications
| Coating/Finish | Hardlube |
| Thread Size (mm) | M20 x 2.50 |
| Thread Standard | DIN |
| Thread Pitch (mm) | 2.50 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 2.4800 |
| Overall Length (Decimal Inch) | 5.5118 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Material Grade | M35 |
| Helix Angle | 38 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.6500 |
| Tapping Depth (Decimal Inch) | 3.0000 |
| Square Length (mm) | 17.53 |
| Square Length (Decimal Inch) | 0.6900 |
| Square Size (Decimal Inch) | 0.6900 |
| Flute Style | Spiral |
| Material Application | Alloy Steel; Stainless Steel; Cast Iron; Low Carbon Steel |
| Series | PER-980SF |
| Helix Angle Range | 15 to 45 |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Class Of Fit | 6H |
| Product Service Code | 5133 |
