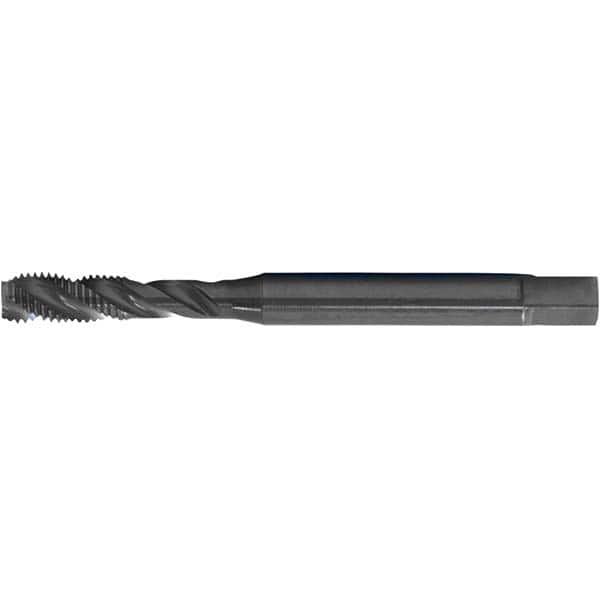

Spiral Flute Tap: M24 x 3.00, DIN & ANSI, 4 Flute, Modified Bottoming, 6H Class of Fit, HSS-E, Black Oxide Finish 2.598″ Thread Length, 6.2992″ OAL, Right Hand Flute, Right Hand Thread, Series PER-893SF
Item #: 18157883
Brand: Cleveland
Model #: C89354
Product Specifications
| Material | HSS-E |
| Coating/Finish | Black Oxide |
| Thread Size (mm) | M24 x 3.00 |
| Thread Standard | DIN; ANSI |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 2.5980 |
| Overall Length (Decimal Inch) | 6.2992 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Material Grade | M35 |
| Helix Angle | 38 |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.7600 |
| Neck Length (Decimal Inch) | 1.0630 |
| Tapping Depth (Decimal Inch) | 2.5000 |
| Tapping Depth (Fractional Inch) | 2-1/2 |
| Square Length (Decimal Inch) | 0.7500 |
| Flute Style | Spiral |
| Material Application | Alloy Steel; Stainless Steel; Cast Iron; Low Carbon Steel |
| Series | PER-893SF |
| Helix Angle Range | 15 to 45 |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Class Of Fit | 6H |
| Product Service Code | 5133 |
