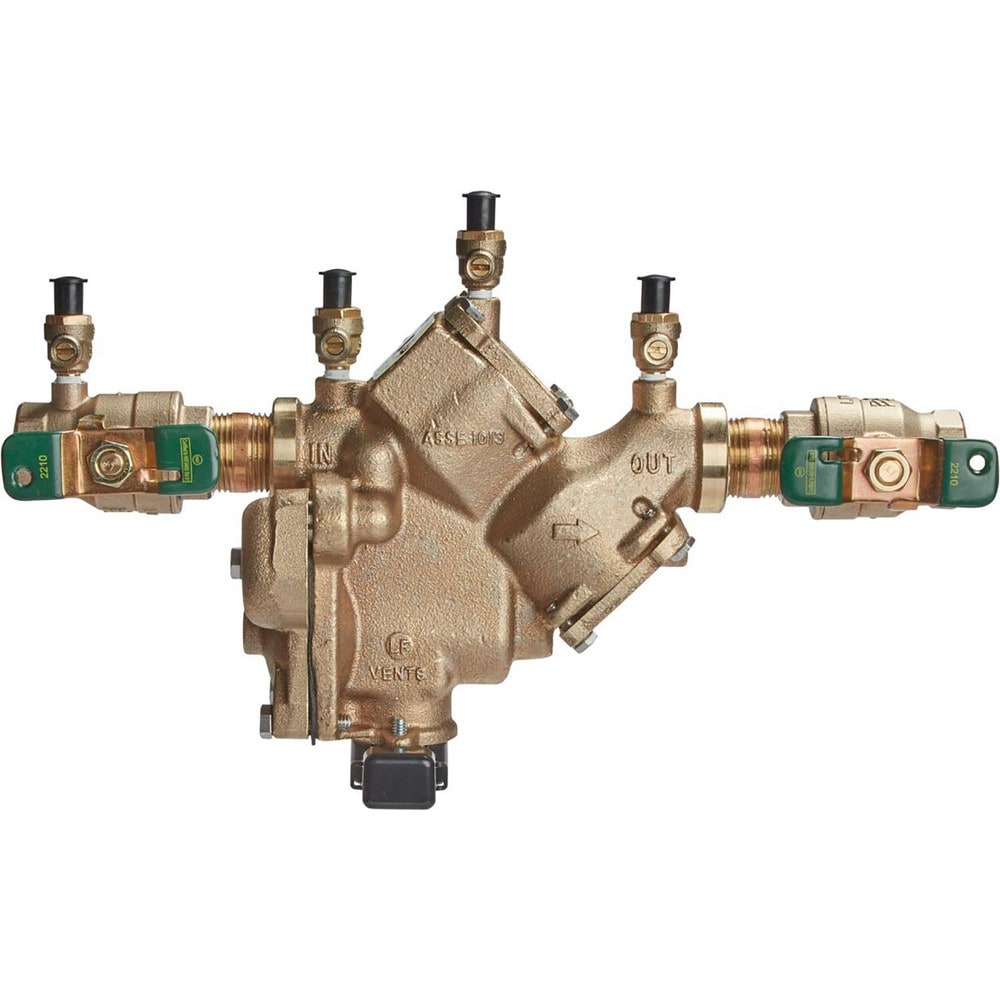

3/4 Thread, Backflow Preventer Valve
Item #: 08121741
Brand: Watts
Model #: F391008
Product Specifications
| Product Type | Reduced Pressure |
| End Connection | Female NPT |
| Pipe Size | 3/4 |
| Material | Lead Free Copper Silicon Alloy |
| Thread Size | 3/4 in |
| Overall Length | 15.75 |
| Overall Width | 10 |
| Maximum Working Pressure | 175.000 |
| Minimum Working Temperature | 33 F |
| Maximum Working Temperature | 140 F |
| For Use With | Continuous Pressure Piping Applications |
| Features | Top Mounted Test Cocks; Unique Patented Air-In And Water-Out Design Provides High Capacity Relief Valve Discharge Performance During Emergency Conditions; Horizontal Or Vertical (Up Or Down) Installation; Alert Features Available With Add-On Sensor Connection Kit; Quarter-Turn Ball Valves With Tee Handles; Lead Free Construction; Compact For Easy Installation; No Special Tools Are Required For Servicing; Features An Integrated Flood Sensor With Sentryplus Alert Technology To Detect Excessive Water Discharges From The Relief Valve |
| Lead Free | Yes |
| Series | LF009 |
| Wog Rating | 175 |
| Additional Information | Replaces MSC# 02862639 |
| UNSPSC Code | 40141609 |
| Product Type | Reduced Pressure |
| End Connection | Female NPT |
| Pipe Size | 3/4 |
| Material | Lead Free Copper Silicon Alloy |
| Thread Size | 3/4 in |
| Overall Length | 15.75 |
| Overall Width | 10 |
| Maximum Working Pressure | 175.000 |
| Minimum Working Temperature | 33 F |
| Maximum Working Temperature | 140 F |
| For Use With | Continuous Pressure Piping Applications |
| Features | Top Mounted Test Cocks; Unique Patented Air-In And Water-Out Design Provides High Capacity Relief Valve Discharge Performance During Emergency Conditions; Horizontal Or Vertical (Up Or Down) Installation; Alert Features Available With Add-On Sensor Connection Kit; Quarter-Turn Ball Valves With Tee Handles; Lead Free Construction; Compact For Easy Installation; No Special Tools Are Required For Servicing; Features An Integrated Flood Sensor With Sentryplus Alert Technology To Detect Excessive Water Discharges From The Relief Valve |
| Lead Free | Yes |
| Series | LF009 |
| Wog Rating | 175 |
| Additional Information | Replaces MSC# 02862639 |
| UNSPSC Code | 40141609 |
| MSC Part # | 08121741 |
| Mfr Part # | F391008 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
