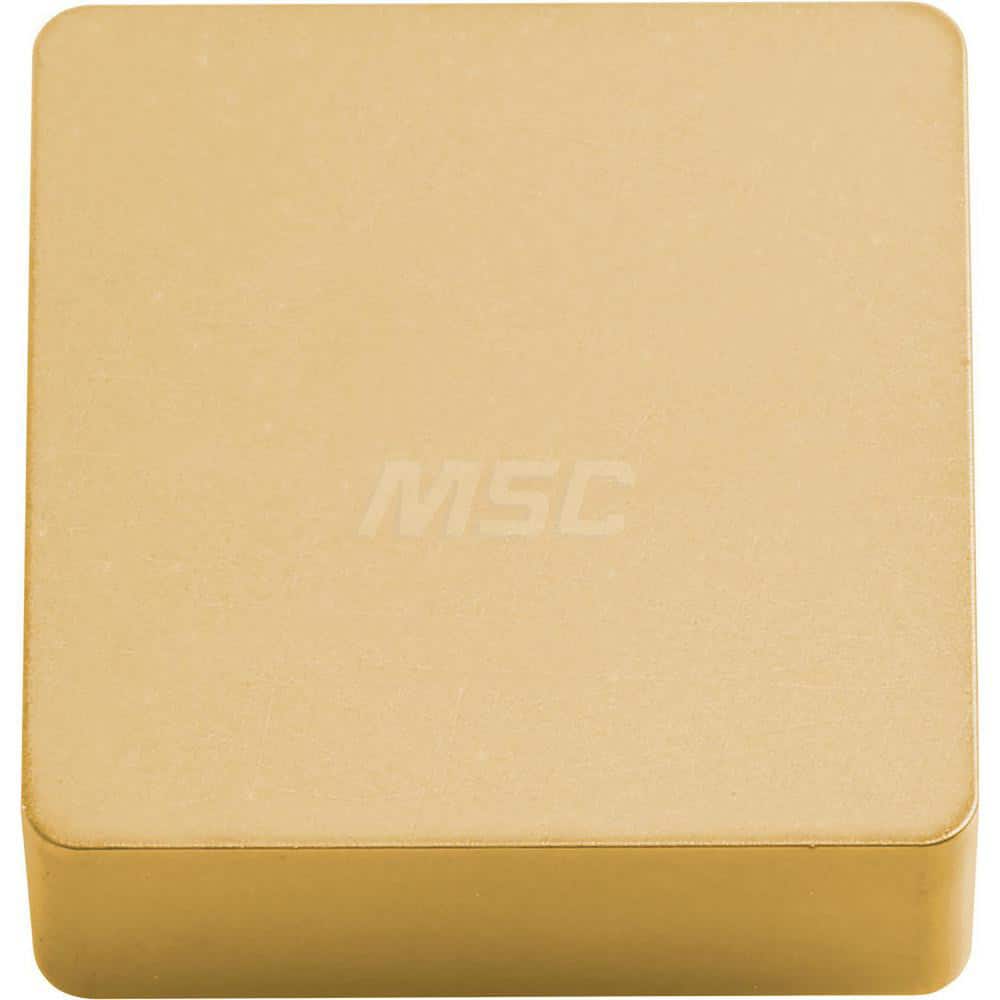

Kyocera SNM 323 KBN900 Grade CBN, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium-Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron, (H) Hardened Materials

Item #: 18242313
Brand: Kyocera
Model #: TBP04001

Product Specifications

Insert Style SNM

Insert Shape Code S

Insert Size Code 323

Insert Shape Square

Clearance Code N

Tolerance Code M

Insert Material Cubic Boron Nitride

Manufacturer Grade KBN900

Inscribed Circle (Inch) 3/8

Insert Holding Method Clamp

Width (Inch) 3/8

Insert Hand Neutral

Insert Thickness (Decimal Inch) 0.1252

Corner Radius (Decimal Inch) 0.0472

Included Angle 90.0

Relief Angle 0

Rake Negative

Insert Length (Inch) 3/8

Primary Workpiece Material H; K

Iso Code SNMN090312

Manufacturers Catalog Number SNM323KBN900

Chip Breaker N

Style SNM

Full Radius No

Coating/Finish Uncoated

Multi-Use Application External Turning; Chamfering; Facing; Boring
