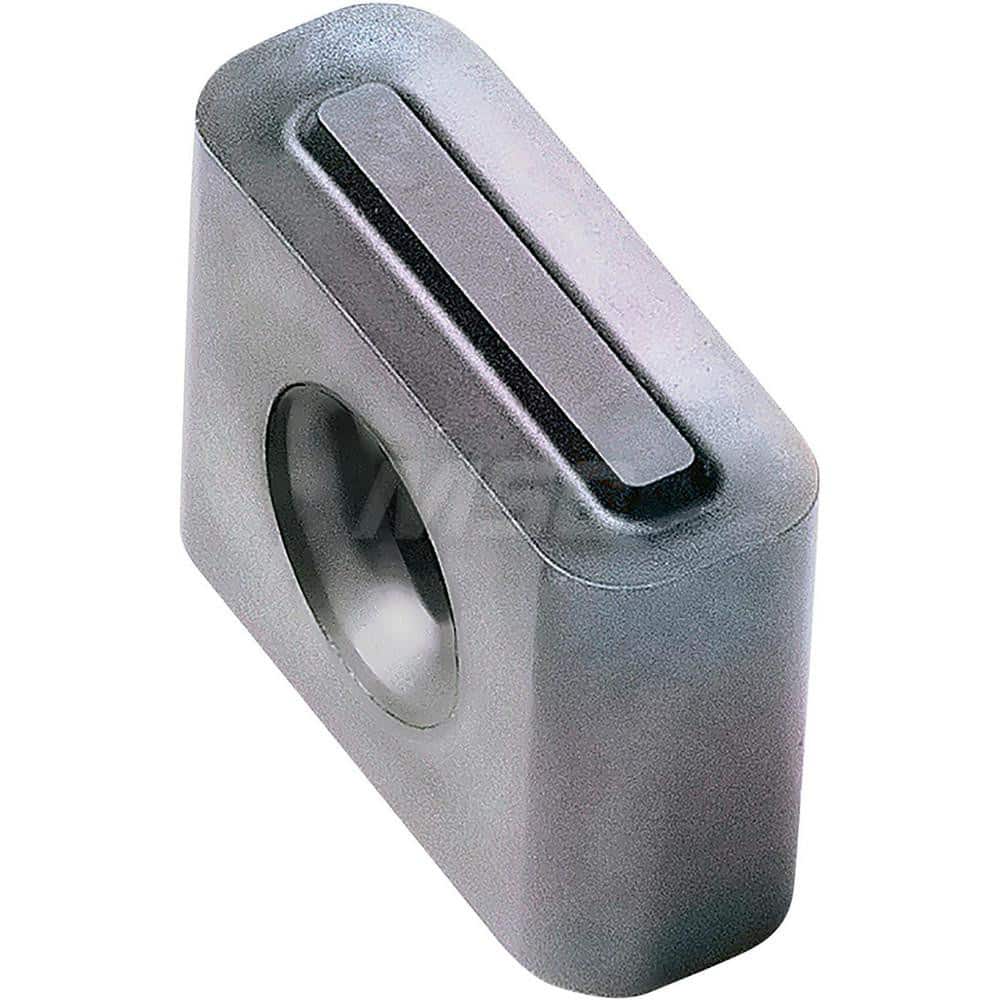

Kyocera LNGX 120916 PR1525 Grade PVD Carbide, 90 Degree Rectangle, Negative Rake Angle, Neutral Milling insert for Finishing in (P) Free-Cutting Steel
Item #: 18242719
Brand: Kyocera
Model #: TLB40133
Product Specifications
| Insert Style | LNGX |
| Insert Size | 120916 |
| Insert Material | Solid Carbide |
| Width (Inch) | 3/8 |
| Manufacturer Grade | PR1525 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Insert Hand | Neutral |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1650 |
| Maximum Depth of Cut (mm) | 12.00 |
| Rake | Negative |
| Ansi Code | LNGX120916PR1525 |
| Iso Code | LNGX120916 |
| Cutting Edge Style | Chamfered |
| Manufacturers Catalog Number | LNGX120916PR1525 |
| Cutter Series Compatibility | MFF |
| Cutting Direction | Neutral |
| Shape | Rectangle |
| Insert Holding Method | Screw |
| Coating/Finish | Megacoat Nano |
