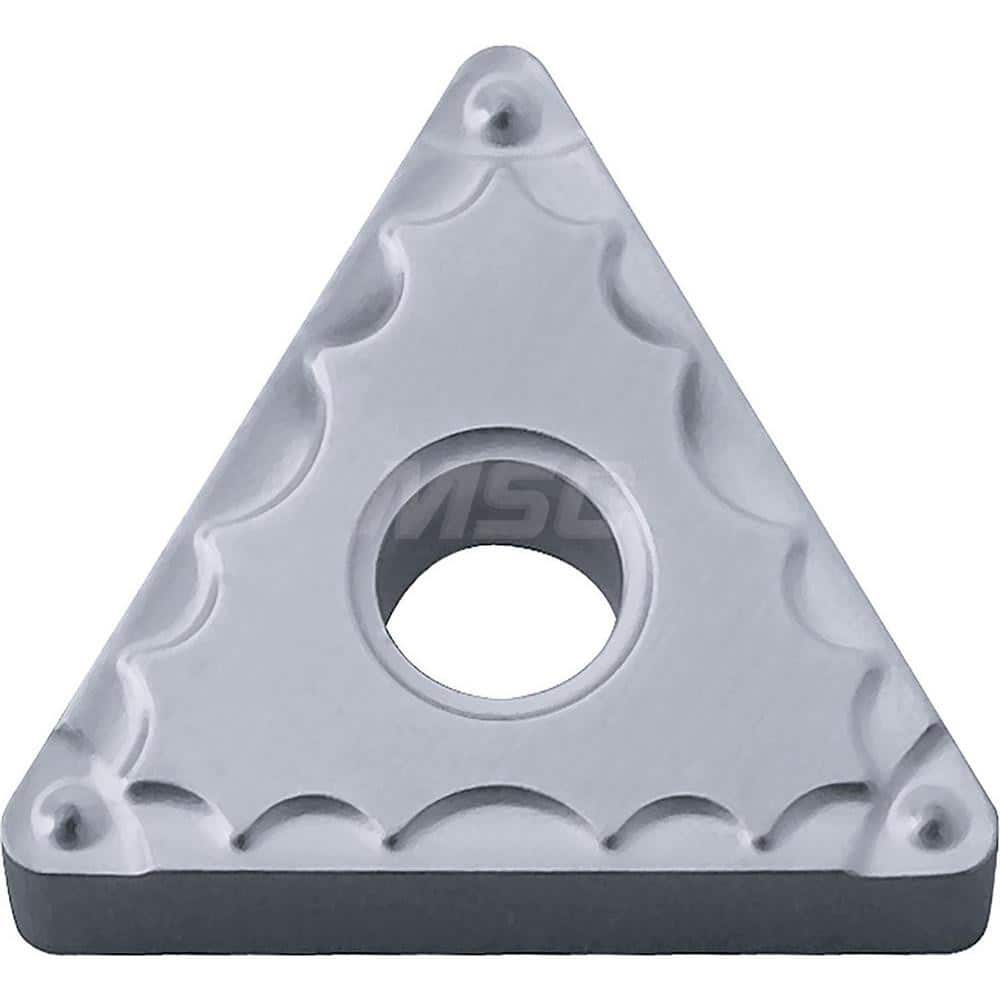

Kyocera TNMG 331GP TN620 Grade Uncoated Cermet, 0 Degree, Triangle, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel
Item #: 18244194
Brand: Kyocera
Model #: TSR06141
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 331 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Cermet |
| Manufacturer Grade | TN620 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Rake | Negative |
| Primary Workpiece Material | P |
| Iso Code | TNMG160404GP |
| Manufacturers Catalog Number | TNMG331GPTN620 |
| Chip Breaker | GP |
| Style | TNMG |
| Full Radius | No |
| Coating/Finish | TiCN |
| Multi-Use Application | External Turning; Chamfering; Facing; Copying; Boring |
