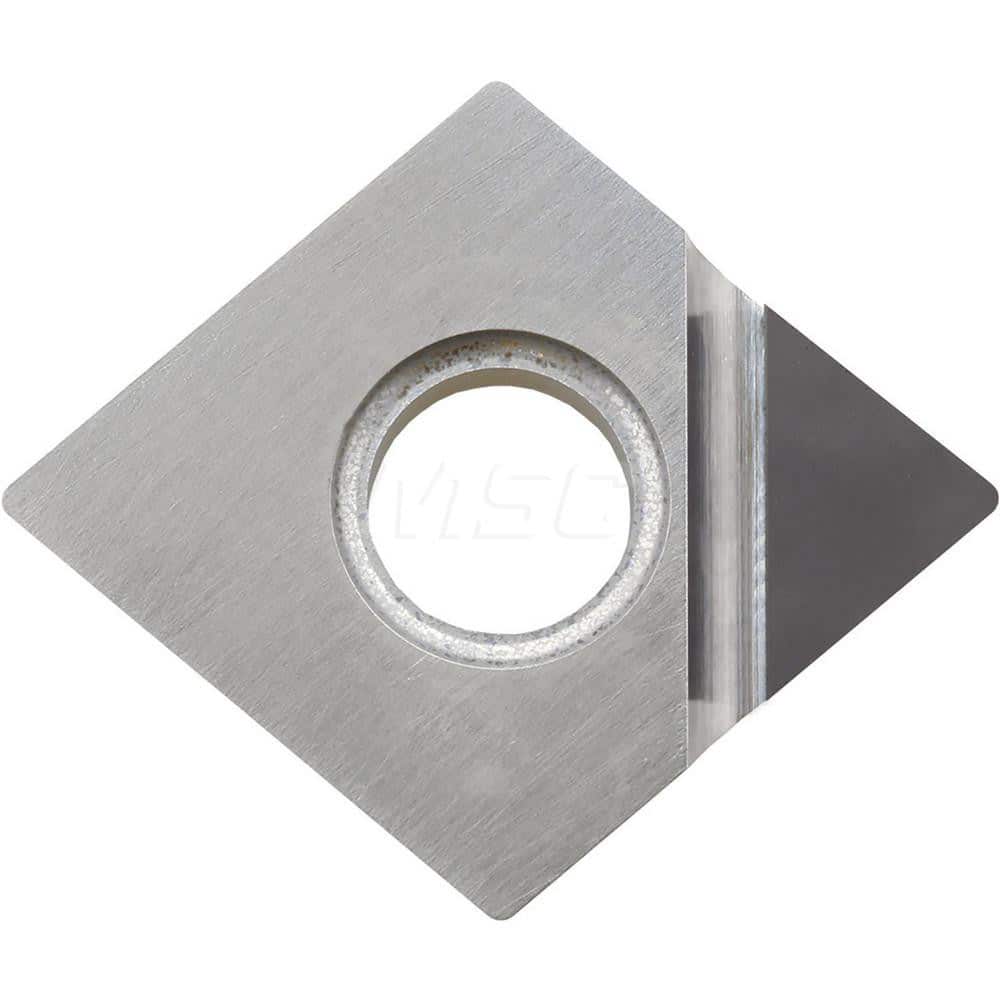

Kyocera CNMM 431M KPD010 Grade PCD, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy
Item #: 18244533
Brand: Kyocera
Model #: TBE00401
Product Specifications
| Insert Style | CNMM |
| Insert Shape Code | C |
| Insert Size Code | 431 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | KPD010 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Rake | Negative |
| Primary Workpiece Material | S; N |
| Iso Code | CNMM120404M |
| Manufacturers Catalog Number | CNMM431MKPD010 |
| Chip Breaker | M |
| Style | CNMM |
| Full Radius | No |
| Coating/Finish | Uncoated |
| Multi-Use Application | External Turning; Facing; Internal Facing; Boring |
