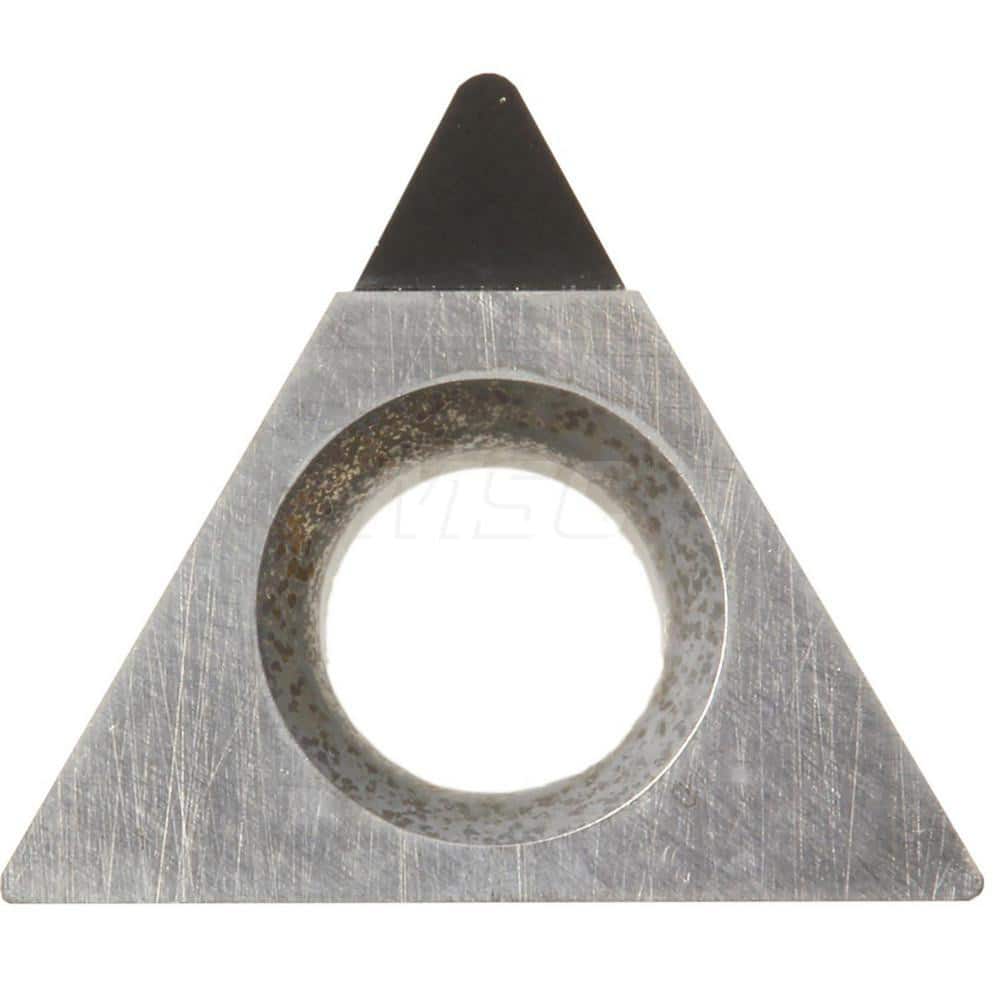

Kyocera TPMH 321 KPD010 Grade PCD, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy
Item #: 18247643
Brand: Kyocera
Model #: TBE00128
Product Specifications
| Insert Style | TPMH |
| Insert Shape Code | T |
| Insert Size Code | 321 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | KPD010 |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Rake | Positive |
| Primary Workpiece Material | S; N |
| Iso Code | TPMH160304 |
| Manufacturers Catalog Number | TPMH321KPD010 |
| Chip Breaker | H |
| Style | TPMH |
| Full Radius | No |
| Coating/Finish | Uncoated |
| Multi-Use Application | External Turning; Back Boring; Copying; Internal Facing; Boring |
