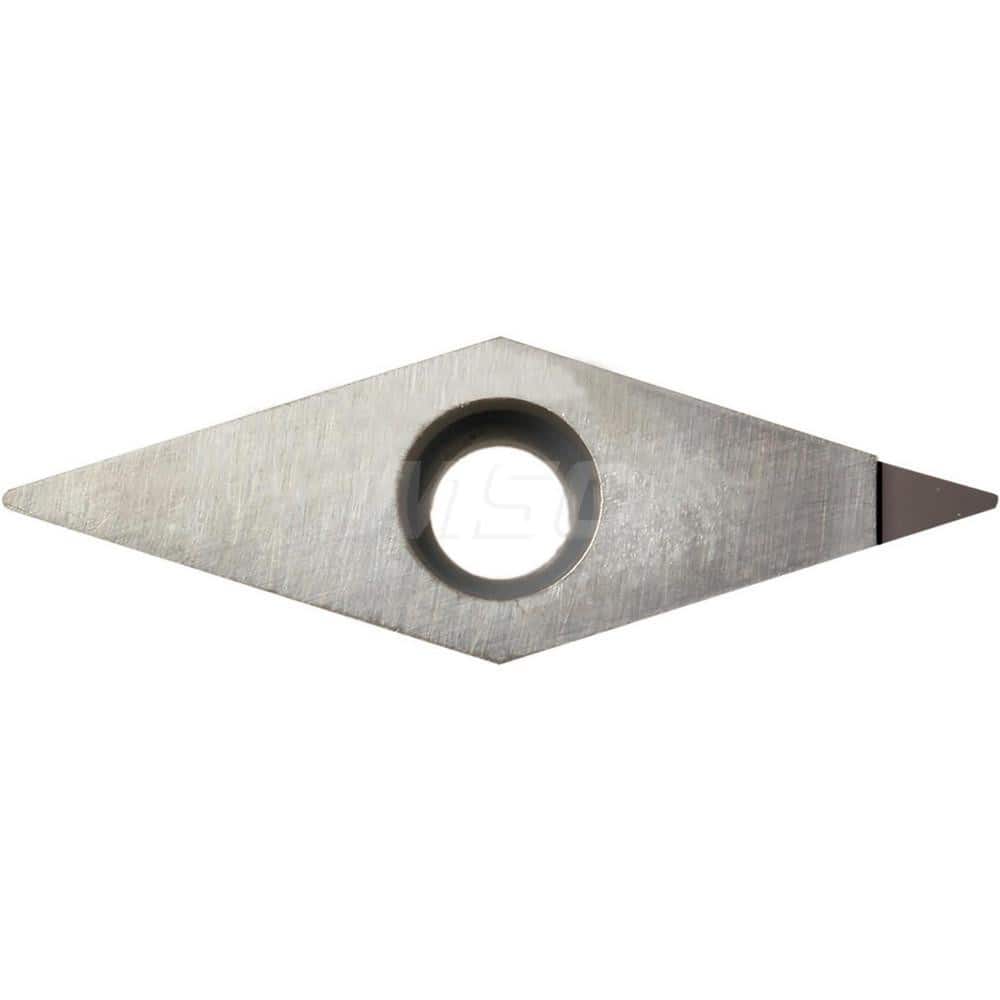

Kyocera VBMT 332 KPD001 Grade PCD, 5 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy
Item #: 18249268
Brand: Kyocera
Model #: TBR05613
Product Specifications
| Insert Style | VBMT |
| Insert Shape Code | V |
| Insert Size Code | 332 |
| Insert Shape | Diamond |
| Clearance Code | B |
| Tolerance Code | M |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | KPD001 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Rake | Positive |
| Primary Workpiece Material | S; N |
| Iso Code | VBMT160408 |
| Manufacturers Catalog Number | VBMT332KPD001 |
| Chip Breaker | T |
| Style | VBMT |
| Full Radius | No |
| Coating/Finish | Uncoated |
| Multi-Use Application | External Turning; Back Boring; Facing; Copying; Profiling; Undercutting; Internal Facing |
