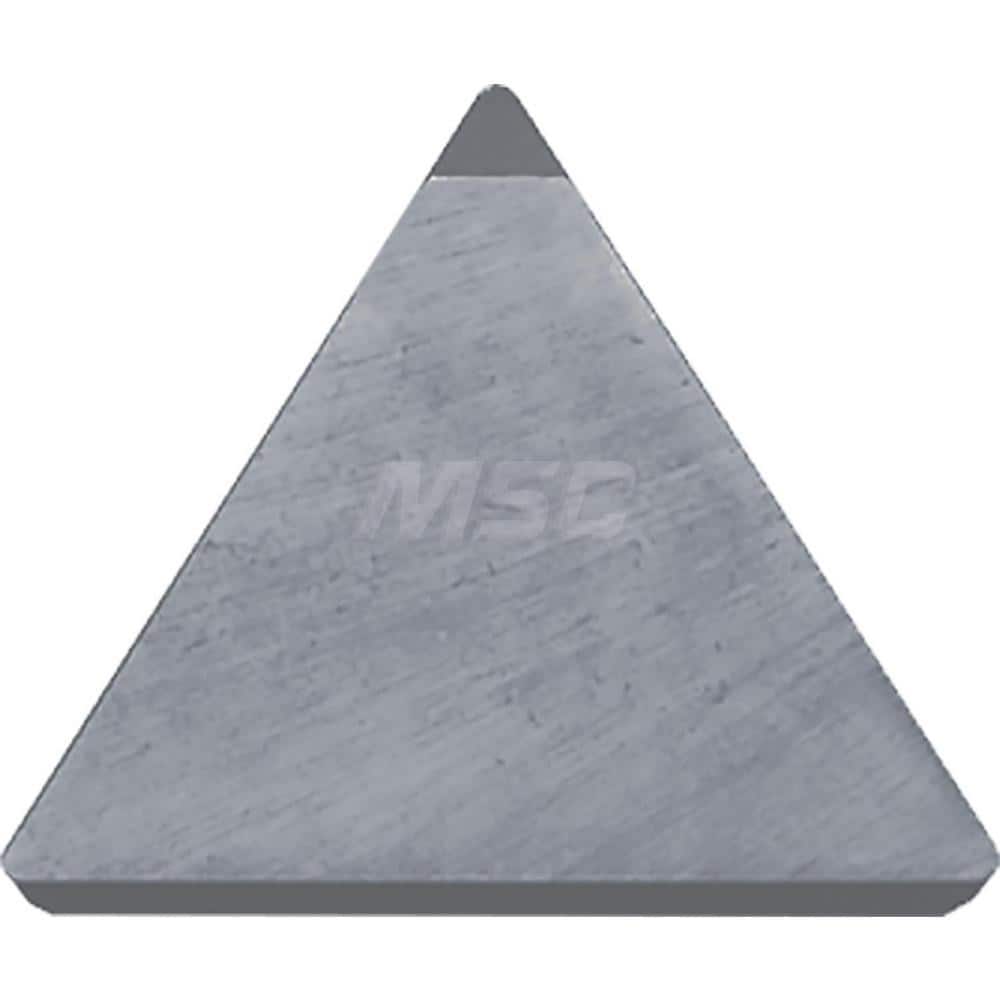

Kyocera TPG 221SET KBN525 Grade CBN, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (H) Hardened Materials
Item #: 18250183
Brand: Kyocera
Model #: TBW05161
Product Specifications
| Insert Style | TPG |
| Insert Shape Code | T |
| Insert Size Code | 221 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | KBN525 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Rake | Positive |
| Primary Workpiece Material | H |
| Iso Code | TPGN110304SE-T |
| Manufacturers Catalog Number | TPG221SETKBN525 |
| Chip Breaker | N |
| Style | TPG |
| Full Radius | No |
| Coating/Finish | Uncoated |
| Multi-Use Application | External Turning; Chamfering; Facing; Boring |
