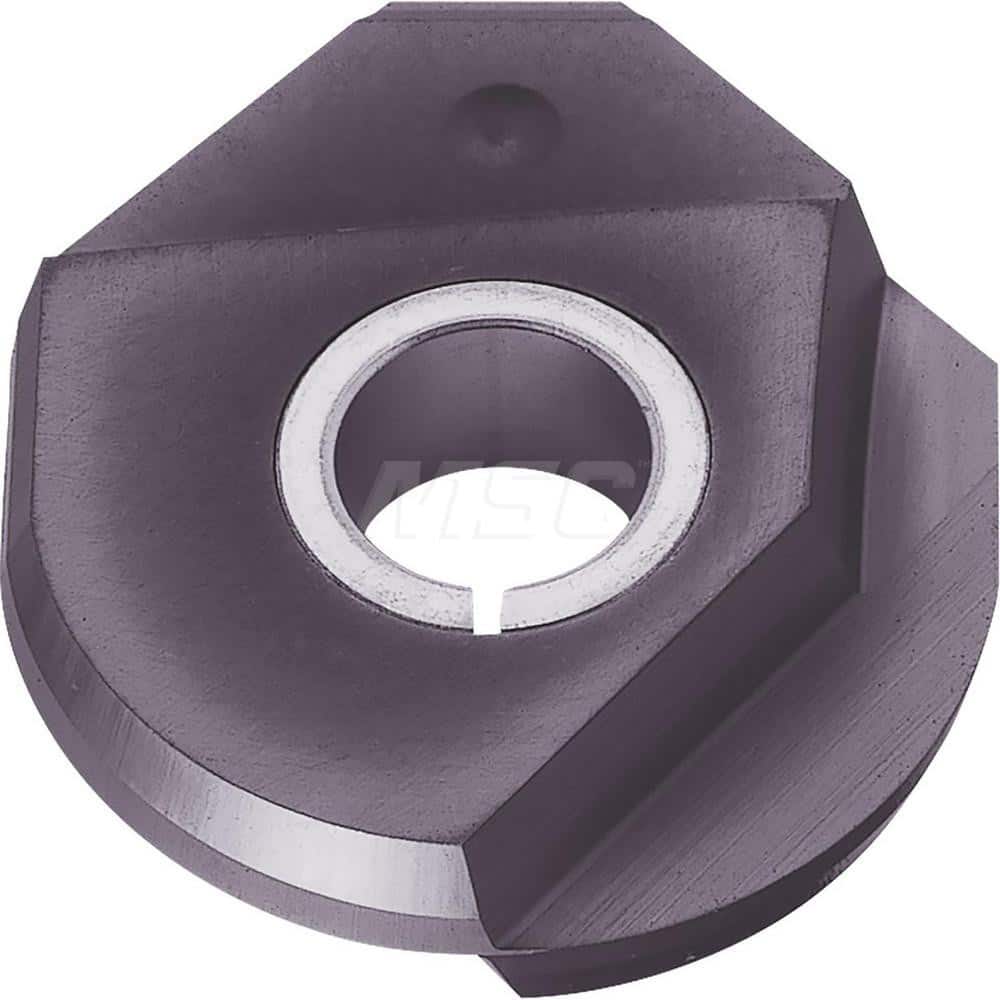

Kyocera RDFG 20FR PR915 Grade PVD Carbide, Round, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Stainless Steel, (K) Gray Cast Iron, (K) Nodular Cast Iron
Item #: 18250514
Brand: Kyocera
Model #: TJG05408
Product Specifications
| Insert Style | RDFG |
| Insert Size | 20 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR915 |
| Inscribed Circle (Decimal Inch) | 0.5551 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (mm) | 10.00 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2402 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Rake | Positive |
| Ansi Code | RDFG20FRPR915 |
| Iso Code | RDFG20FR |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | RDFG20FRPR915 |
| Cutter Series Compatibility | MRF; MRFW |
| Chip Breaker | FR |
| Cutting Direction | Right Hand |
| Shape | Round |
| Insert Holding Method | Screw |
| Coating/Finish | TiAlN |
| Width (Decimal Inch - 4 Decimals) | 0.5551 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2047 |
| Length (Decimal Inch - 4 Decimals) | 0.7874 |
