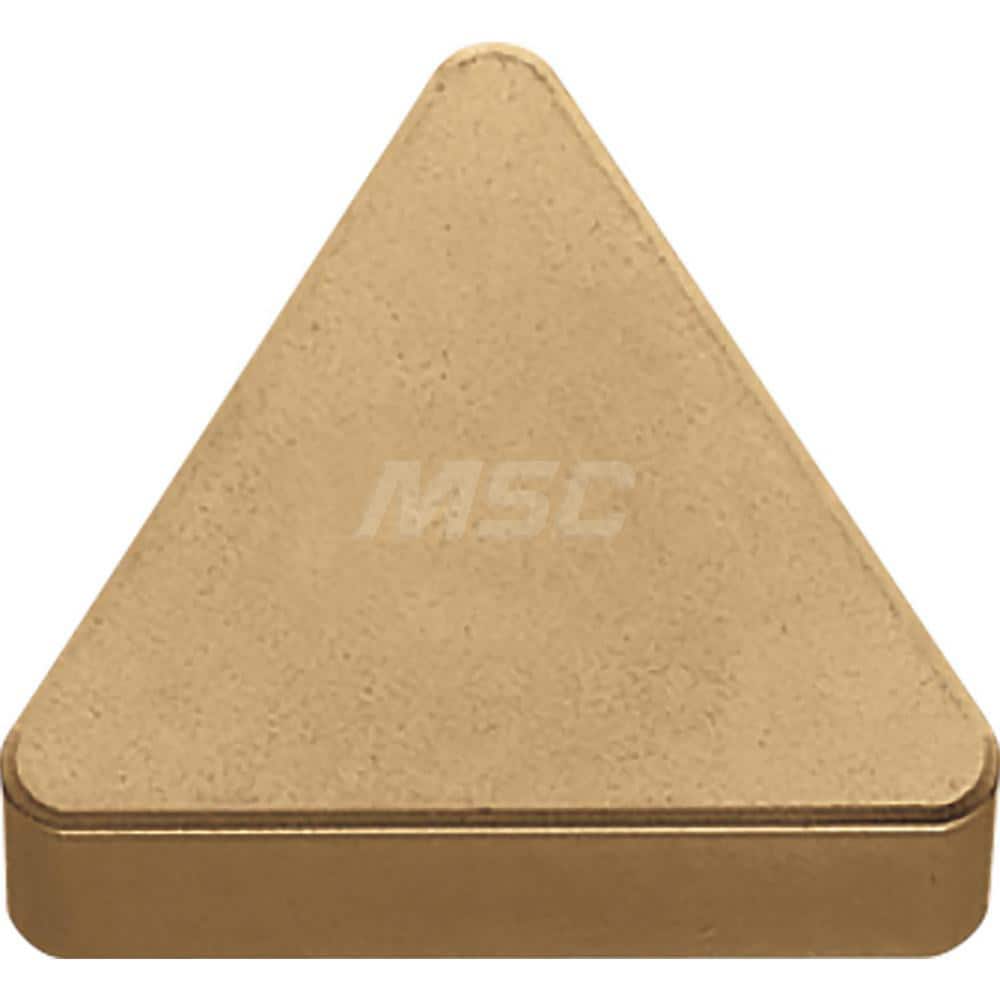

Kyocera TNM 222 KBN900 Grade CBN, 0 Degree, Triangle, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium-Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron, (H) Hardened Materials

Item #: 18257394
Brand: Kyocera
Model #: TBP05000

Product Specifications

Insert Style TNM

Insert Shape Code T

Insert Size Code 222

Insert Shape Triangle

Clearance Code N

Tolerance Code M

Insert Material Cubic Boron Nitride

Manufacturer Grade KBN900

Inscribed Circle (Inch) 1/4

Insert Holding Method Clamp

Insert Hand Neutral

Insert Thickness (Decimal Inch) 0.1252

Corner Radius (Decimal Inch) 0.0315

Included Angle 60.0

Relief Angle 0

Rake Negative

Primary Workpiece Material H; K

Iso Code TNMN110308

Manufacturers Catalog Number TNM222KBN900

Chip Breaker N

Style TNM

Full Radius No

Coating/Finish Uncoated

Multi-Use Application External Turning; Facing; Copying; Boring

Insert Style	TNM
Insert Shape Code	T
Insert Size Code	222
Insert Shape	Triangle
Clearance Code	N
Tolerance Code	M
Insert Material	Cubic Boron Nitride
Manufacturer Grade	KBN900
Inscribed Circle (Inch)	1/4
Insert Holding Method	Clamp
Insert Hand	Neutral
Insert Thickness (Decimal Inch)	0.1252
Corner Radius (Decimal Inch)	0.0315
Included Angle	60.0
Relief Angle	0
Rake	Negative
Primary Workpiece Material	H; K
Iso Code	TNMN110308
Manufacturers Catalog Number	TNM222KBN900
Chip Breaker	N
Style	TNM
Full Radius	No
Coating/Finish	Uncoated
Multi-Use Application	External Turning; Facing; Copying; Boring
