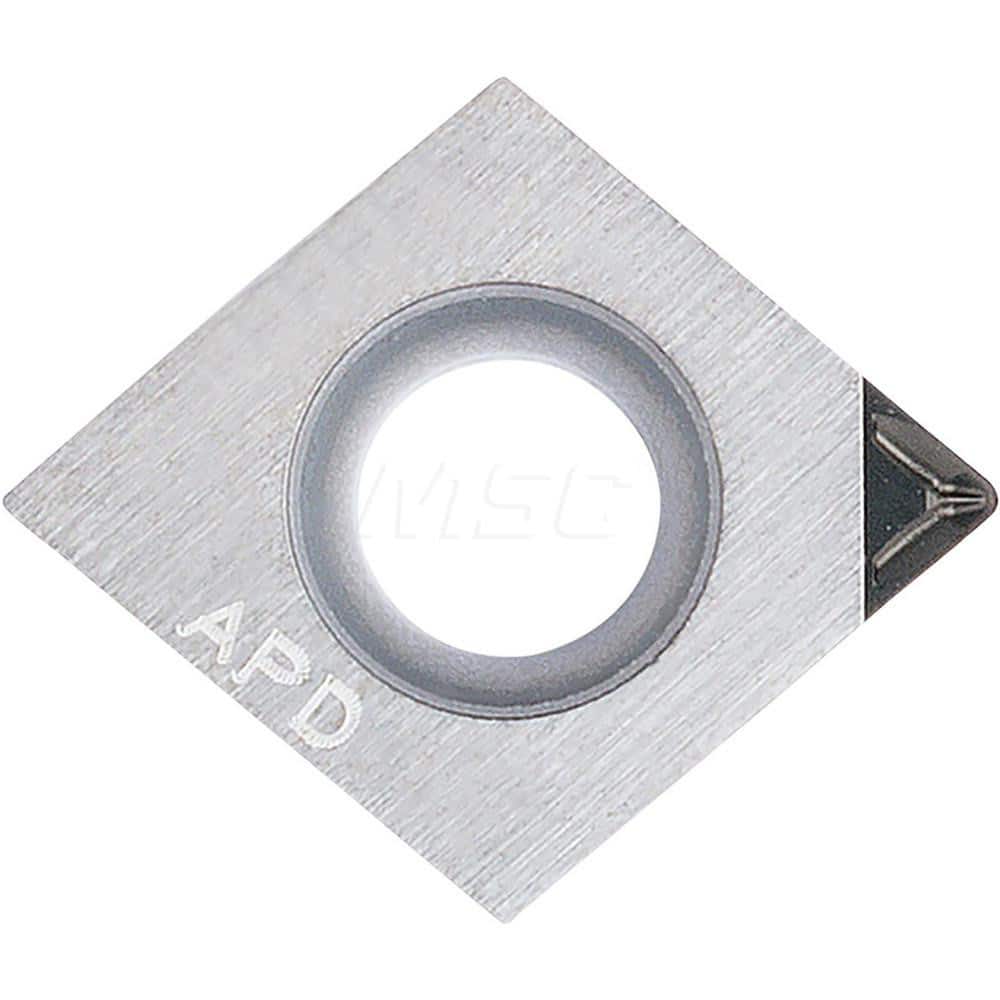

Kyocera CCMT3251AP KPD001 Grade PCD, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals and (S) Titanium Alloy
Item #: 18257527
Brand: Kyocera
Model #: TBR40002
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 3251 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | KPD001 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Rake | Positive |
| Primary Workpiece Material | S; N |
| Iso Code | CCMT09T304APD |
| Manufacturers Catalog Number | CCMT3251APDKPD001 |
| Chip Breaker | AP |
| Style | CCMT |
| Full Radius | No |
| Coating/Finish | Uncoated |
| Multi-Use Application | External Turning; Facing; Internal Facing; Boring |
