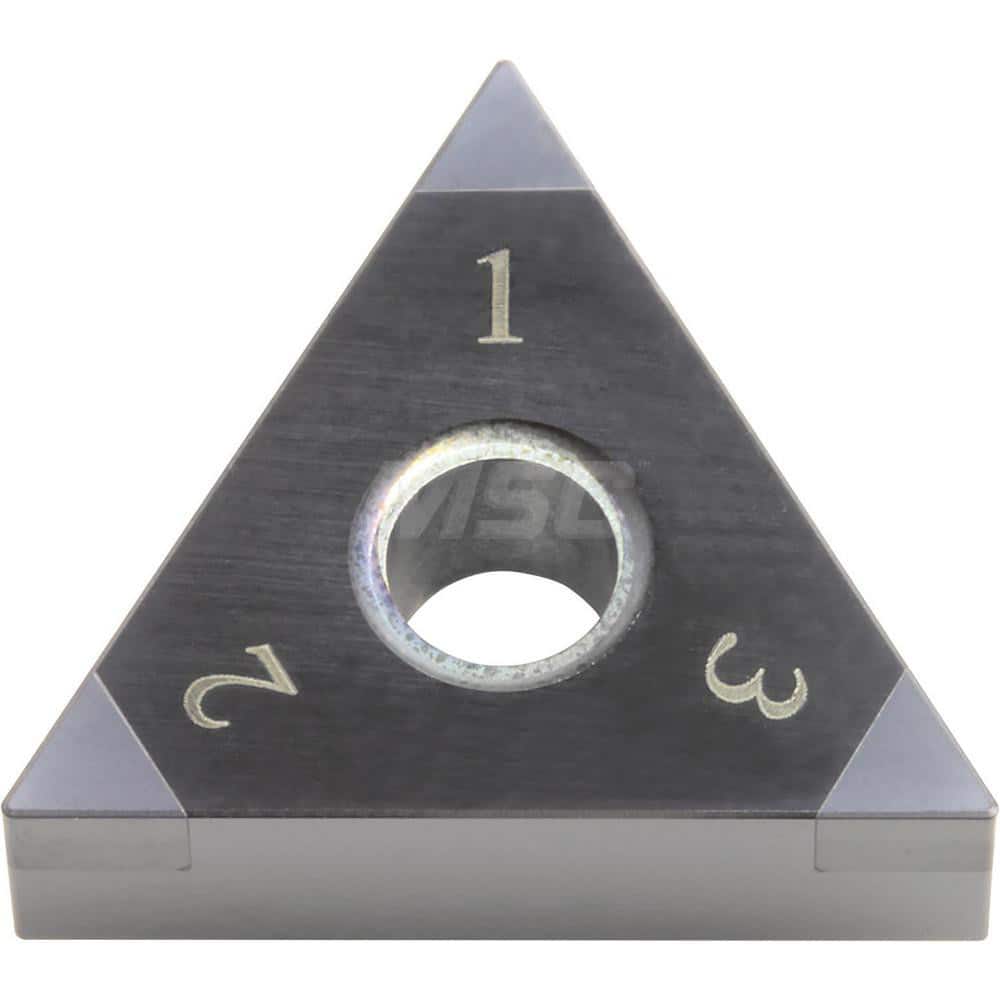

Kyocera TNGA 332T00515ME KBN70M Grade CBN, 0 Degree, Triangle, Negative Rake Angle, Neutral Turning Insert for Heavy Interruption and Finishing-Medium in Powdered Steel
Item #: 18257634
Brand: Kyocera
Model #: TBJ04357
Product Specifications
| Insert Style | TNGA |
| Insert Shape Code | T |
| Insert Size Code | 332 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | KBN70M |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Rake | Negative |
| Primary Workpiece Material | P; M |
| Iso Code | TNGA060408T01215ME |
| Manufacturers Catalog Number | TNGA332T00515MEKBN70M |
| Chip Breaker | A |
| Style | TNGA |
| Full Radius | No |
| Coating/Finish | Megacoat |
| Multi-Use Application | External Turning; Chamfering; Facing; Copying; Boring |
