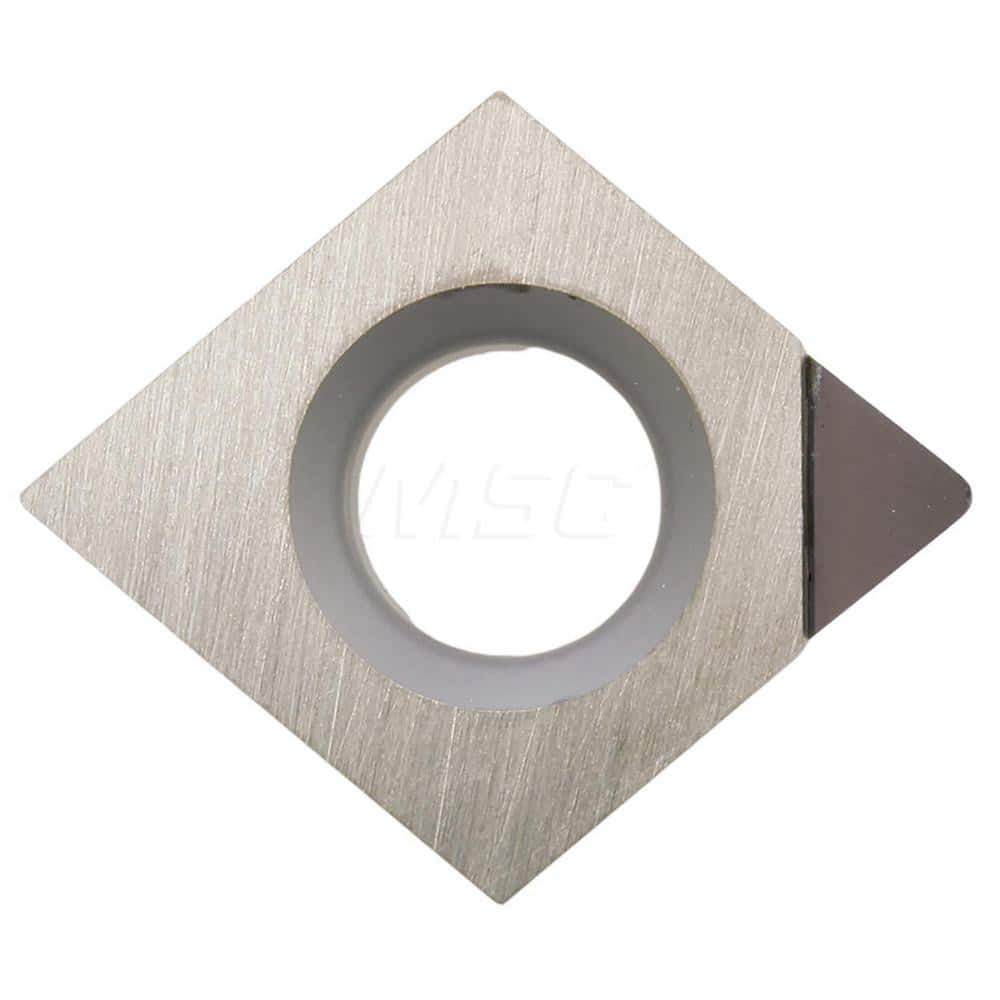

Kyocera CPMH 3205 KPD010 Grade PCD, 11 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy

Item #: 18258111
Brand: Kyocera
Model #: TBE00146

Product Specifications

Insert Style CPMH

Insert Shape Code C

Insert Size Code 3205

Insert Shape Diamond

Clearance Code P

Tolerance Code M

Insert Material Polycrystalline Diamond

Manufacturer Grade KPD010

Hole Diameter (Decimal Inch) 0.1772

Inscribed Circle (Inch) 3/8

Insert Holding Method Screw; Clamp

Width (Inch) 3/8

Insert Hand Neutral

Insert Thickness (Decimal Inch) 0.1252

Corner Radius (Decimal Inch) 0.0079

Included Angle 80.0

Relief Angle 11

Rake Positive

Primary Workpiece Material S; N

Iso Code CPMH090302

Manufacturers Catalog Number CPMH3205KPD010

Chip Breaker H

Style CPMH

Full Radius No

Coating/Finish Uncoated

Multi-Use Application Internal Facing; Boring

Insert Style	CPMH
Insert Shape Code	C
Insert Size Code	3205
Insert Shape	Diamond
Clearance Code	P
Tolerance Code	M
Insert Material	Polycrystalline Diamond
Manufacturer Grade	KPD010
Hole Diameter (Decimal Inch)	0.1772
Inscribed Circle (Inch)	3/8
Insert Holding Method	Screw; Clamp
Width (Inch)	3/8
Insert Hand	Neutral
Insert Thickness (Decimal Inch)	0.1252
Corner Radius (Decimal Inch)	0.0079
Included Angle	80.0
Relief Angle	11
Rake	Positive
Primary Workpiece Material	S; N
Iso Code	CPMH090302
Manufacturers Catalog Number	CPMH3205KPD010
Chip Breaker	H
Style	CPMH
Full Radius	No
Coating/Finish	Uncoated
Multi-Use Application	Internal Facing; Boring
