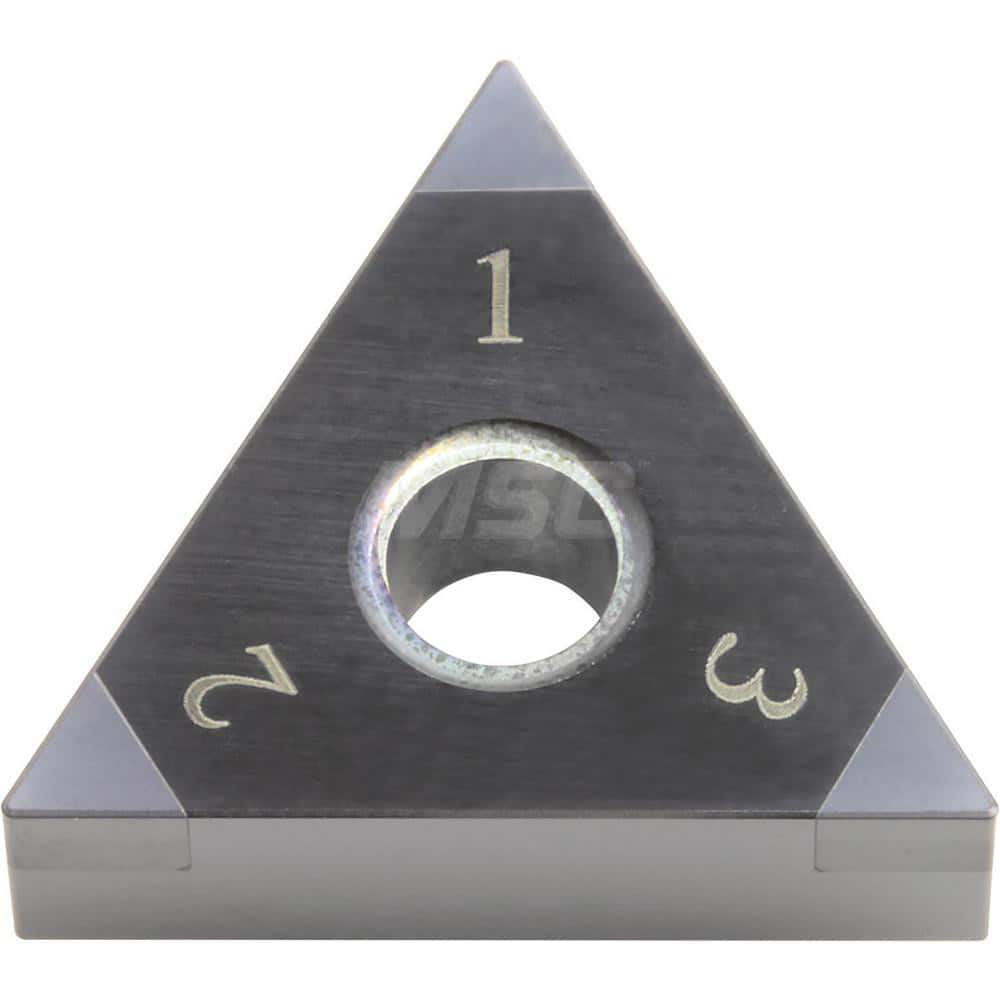

Kyocera TNGA 333S00730MET KBN35M Grade Honeycomb CBN, 0 Degree, Triangle, Negative Rake Angle, Neutral Turning Insert for Heavy Interruption and Roughing in (H) Hardened Materials
Item #: 18258343
Brand: Kyocera
Model #: TBA04363
Product Specifications
| Insert Style | TNGA |
| Insert Shape Code | T |
| Insert Size Code | 333 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | KBN35M |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Rake | Negative |
| Primary Workpiece Material | H |
| Iso Code | TNGA160412S01730MET |
| Manufacturers Catalog Number | TNGA333S00730METKBN35M |
| Chip Breaker | A |
| Style | TNGA |
| Full Radius | No |
| Coating/Finish | Megacoat |
| Multi-Use Application | External Turning; Chamfering; Facing; Copying; Boring |
