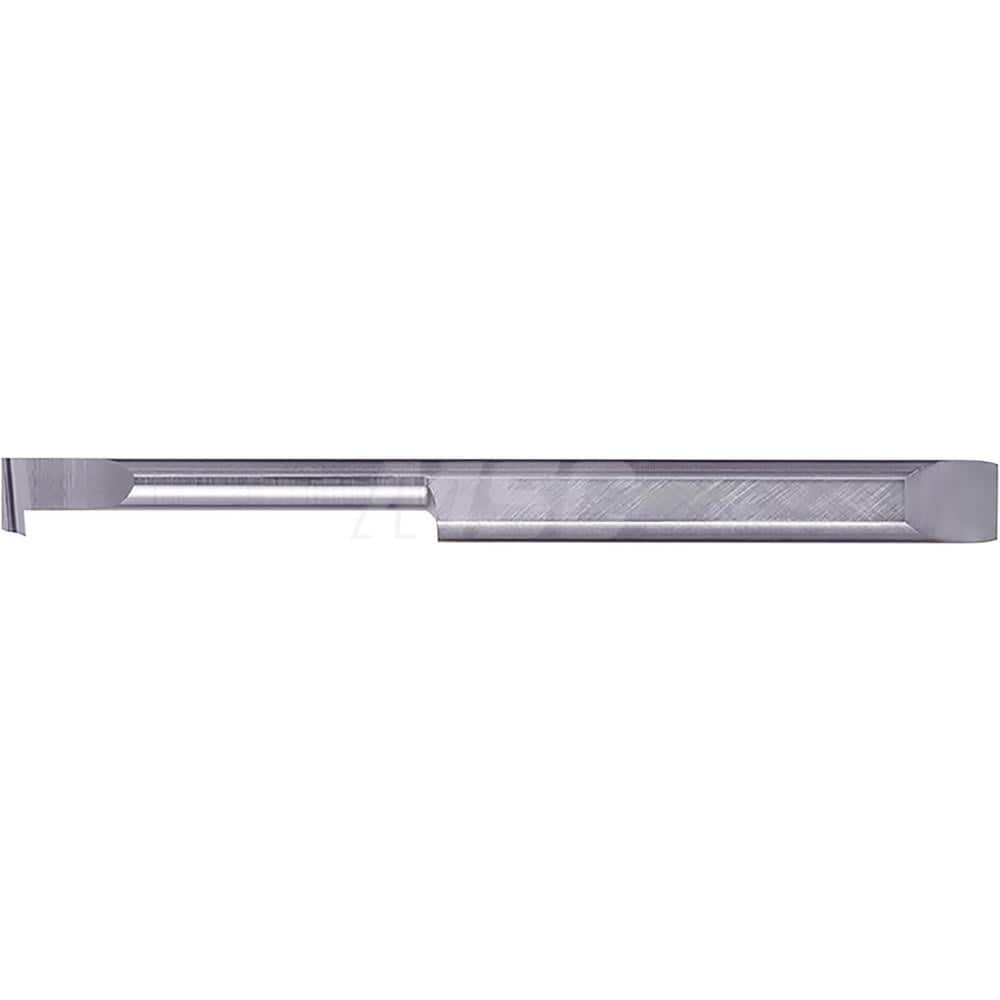

Back Boring Bar: 4 mm Min Bore, 2 mm Max Depth, Right Hand Cut, Carbide 4 mm Shank Dia, 48.70 mm OAL, 0.05 mm Corner Radius
Item #: 18288548
Brand: Kyocera
Model #: TKB08370
Product Specifications
| Boring Bar Type | Back Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (mm) | 4.00 |
| Material | Carbide |
| Maximum Bore Depth (mm) | 20.00 |
| Shank Diameter (mm) | 4.00 |
| Overall Length (mm) | 48.70 |
| Finish Coating | Megacoat |
| Corner Radius (mm) | 0.05 |
| Bar End Angle | 30 |
| Manufacturer Grade | PR1225 |
| Series | EZB |
| Coating Process | PVD |
| Manufacturers Catalog Number | EZBTR040040005PR1225 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
