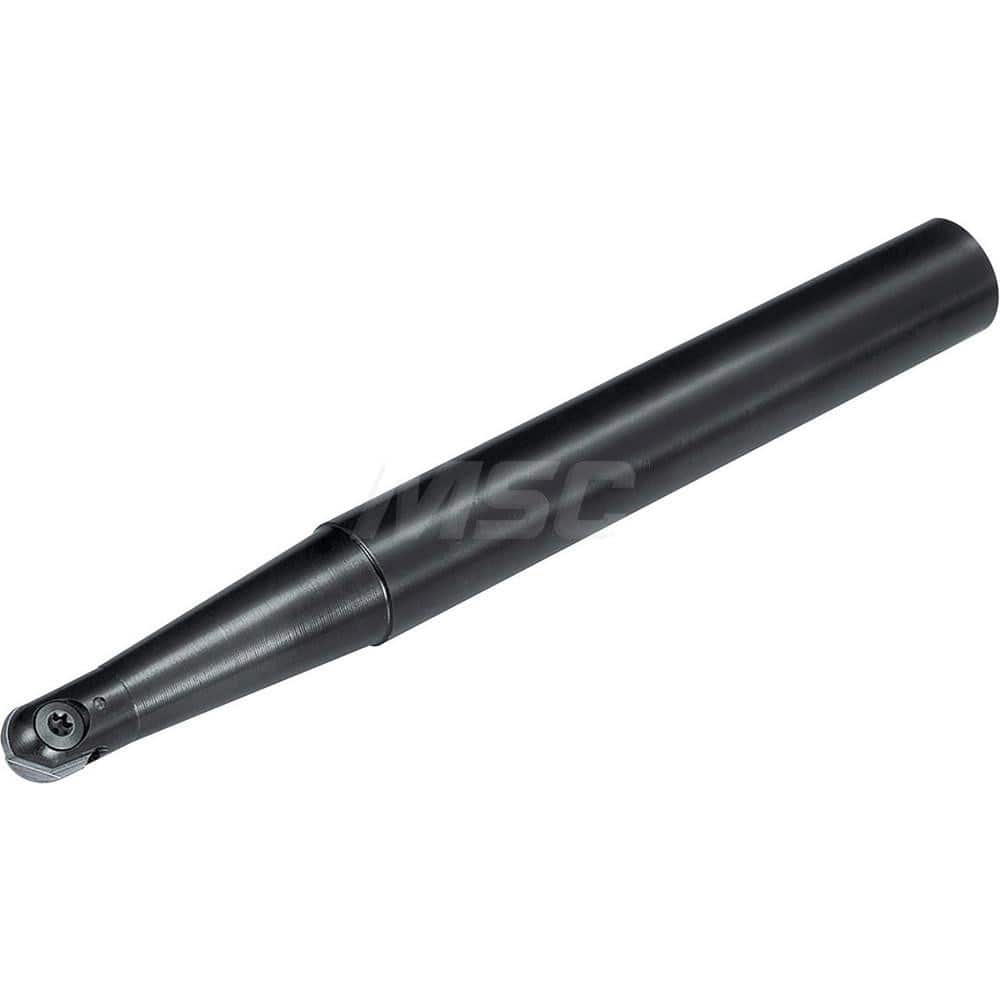

Indexable Ball Nose End Mills; Cutting Diameter (mm): 12.00; Maximum Depth of Cut (mm): 5.00; Shank Type: Straight Shank; Shank Diameter (mm): 16.0000; Toolholder Style: MRF; Number of Ball Nose Inserts Used on Toolholder: 1; Insert Style: RDFG12FR; Serie
Item #: 18289215
Brand: Kyocera
Model #: THN01634
Product Specifications
| Cutting Diameter (mm) | 12.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 16.0000 |
| Toolholder Style | MRF |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | RDFG12FR |
| Series | MRF |
| Overall Length (mm) | 160.0000 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | No |
| Weldon Flat | No |
| Tapered Neck | Yes |
| Number of Flutes | 1 |
| Head Length (mm) | 60.00 |
| Number of Side Inserts Used on Toolholder | 7 |
