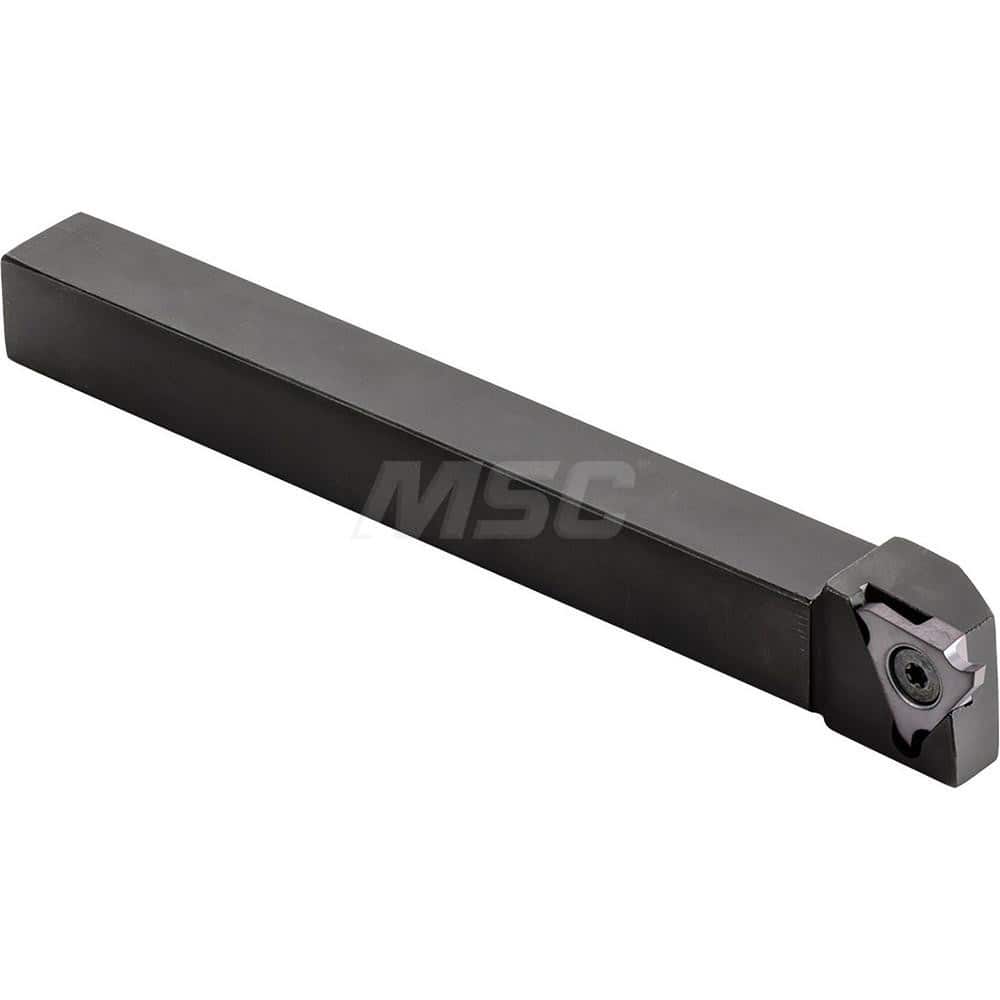

Indexable Grooving Toolholder: KGBFL1616JX16F, External Left Hand, No
Item #: 18290064
Brand: Kyocera
Model #: THC14598
Product Specifications
| Internal or External | External |
| Toolholder Type | Non-Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 3.00 |
| Minimum Groove Width (mm) | 0.25 |
| Maximum Groove Width (mm) | 3.00 |
| Toolholder Style | GBF |
| Insert Holding Method | Screw |
| Insert Compatibility | GBF32L? |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Series | GBF |
| Overall Length (mm) | 120.00 |
| Multi-use Tool | No |
| Cutting Tool Application | Shallow Grooving; Small Parts Machining |
| Vibration Dampening | No |
| Manufacturers Catalog Number | KGBFL1616JX16F |
| Toolholder Material | Steel |
| Coolant Through | No |
