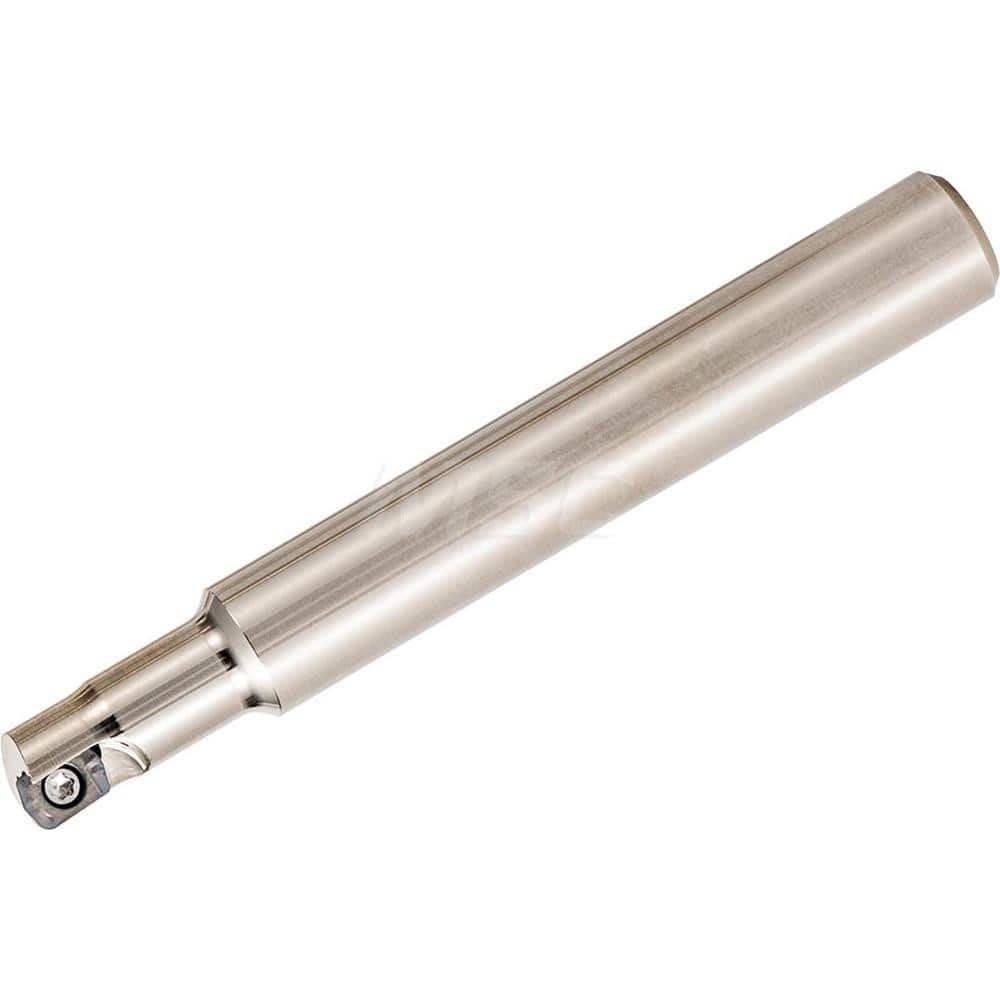

Indexable High-Feed End Mill: 10 mm Weldon Shank Uses 1 LPGT Inserts, 0.5 mm Max Depth, 58 mm OAL, Through Coolant
Item #: 18290072
Brand: Kyocera
Model #: THN08249
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.3150 |
| Cutting Diameter (mm) | 8.00 |
| Maximum Depth of Cut (mm) | 0.50 |
| Toolholder Style | MFH |
| Shank Type | Weldon |
| Shank Diameter (mm) | 10.00 |
| Compatible Insert Style | LPGT |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 1 |
| Overall Length (mm) | 58.00 |
| Series | MFHO |
| Maximum RPM | 20000 |
| Head Length (mm) | 16.00 |
| Weldon Flat | Yes |
| Complete Insert Compatibility | LPGT01? |
| Lead Angle | 10 |
| Manufacturers Catalog Number | MFH08W10011T |
| Number Of Flutes | 1 |
| End Mill Material | Steel |
| Coolant Through | Yes |
