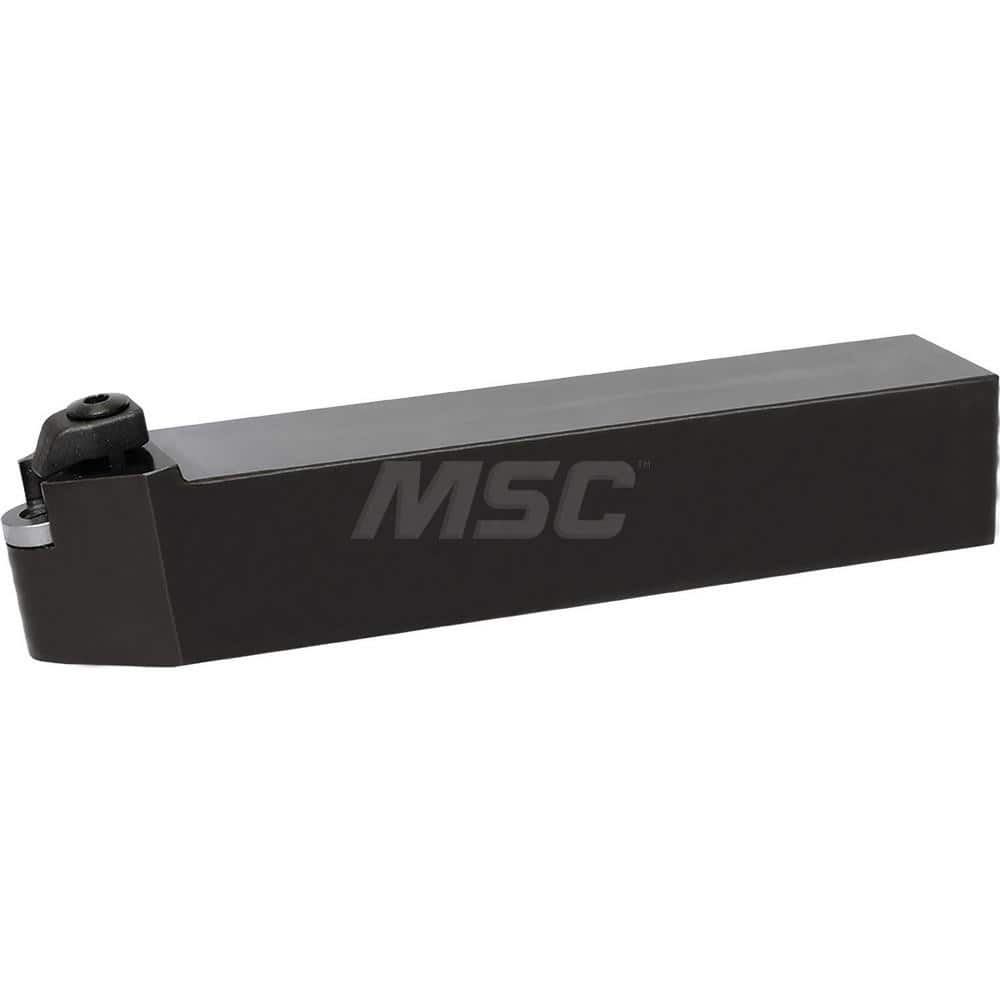

Indexable Turning Toolholders; Hand of Holder: Left Hand; Toolholder Style: LLTH; Rake: Negative; Rake Angle: -13; Multi-use Tool: Yes; Lead Angle: 117.5; Insert Holding Method: Lock Pin; Lever Lock; Shank Width (Decimal Inch): 0.9843; Insert Compatibilit
Item #: 18290239
Brand: Kyocera
Model #: THC01220
Product Specifications
| Hand of Holder | Left Hand |
| Toolholder Style | LLTH |
| Rake | Negative |
| Rake Angle | -13 |
| Multi-use Tool | Yes |
| Lead Angle | 117.5 |
| Insert Holding Method | Lock Pin; Lever Lock |
| Shank Width (Decimal Inch) | 0.9843 |
| Insert Compatibility | VNMG33?; VNMA33?; VNMM33? |
| Shank Height (mm) | 25.00 |
| Series | LLTH |
| Overall Length (mm) | 150.00 |
| Cutting Tool Application | External Turning; Facing; Copying; Undercutting |
| Toolholder Material | Steel |
| ISO Number | PVPNL2525M-16Q |
| Complete Insert Compatibility | VNMG33?; VNMA33?; VNMM33? |
| Coolant Through | No |
