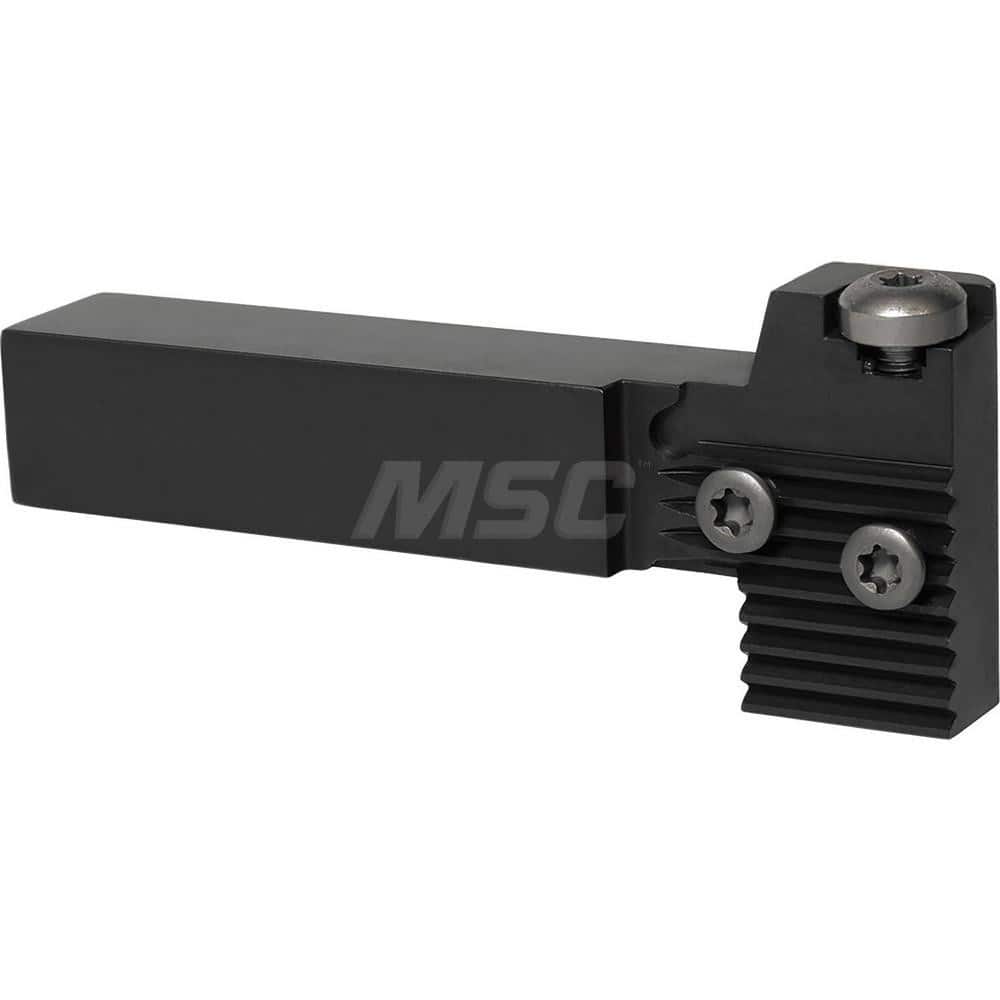

Indexable Grooving Toolholder: KGDL12C, External Left Hand, 3/4″ Shank Width, No
Item #: 18290544
Brand: Kyocera
Model #: THT05041
Product Specifications
| Internal or External | External |
| Toolholder Type | Non-Face Grooving |
| Hand of Holder | Left Hand |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 6.00 |
| Toolholder Style | KGD |
| Insert Holding Method | Clamp |
| Insert Compatibility | GDM15? |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Height (Inch) | 3/4 |
| Series | KGD |
| Overall Length (Decimal Inch) | 4.0900 |
| Multi-use Tool | Yes |
| Vibration Dampening | No |
| Multi-Use Application | Cut-Off; External Grooving |
| Manufacturers Catalog Number | KGDL12C |
| Toolholder Material | Steel |
| Coolant Through | No |
