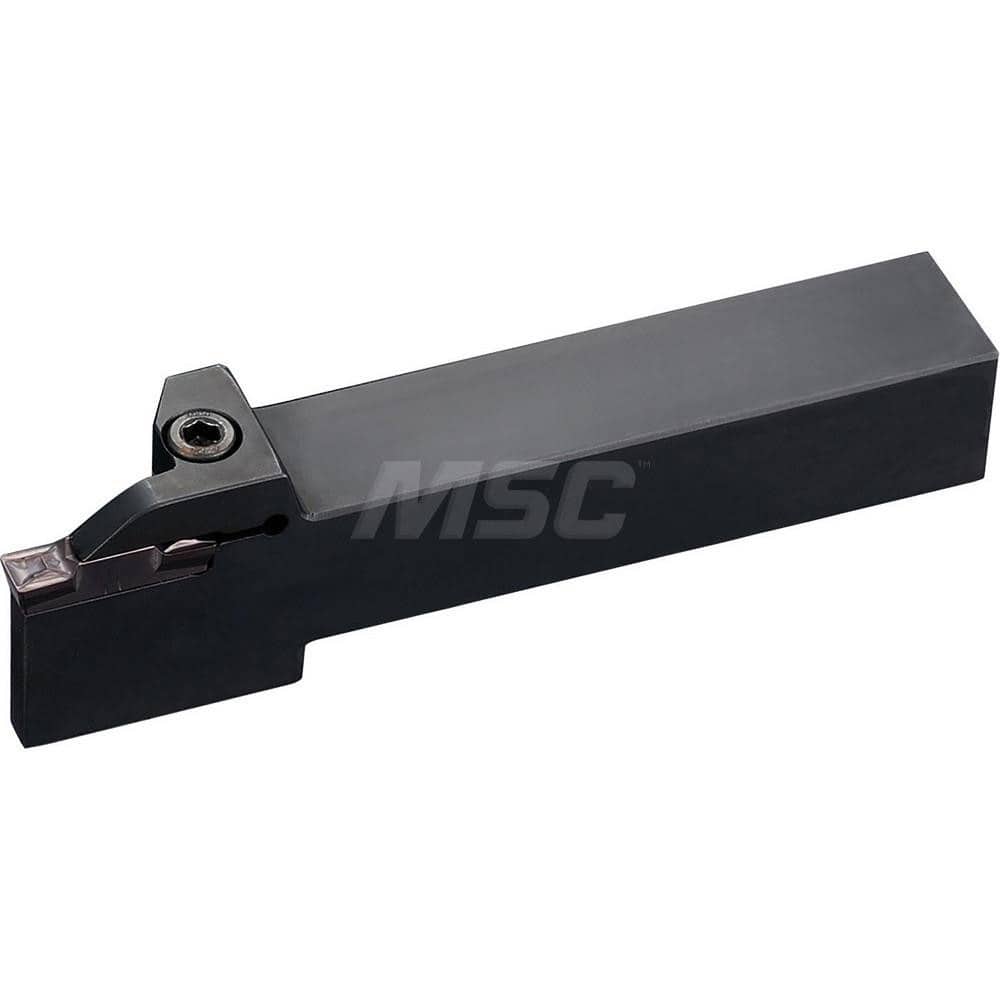

Indexable Grooving Toolholder: KGDR165T17, External Right Hand, 1″ Shank Width, No
Item #: 18290668
Brand: Kyocera
Model #: THT05134
Product Specifications
| Internal or External | External |
| Toolholder Type | Non-Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 17.00 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 6.00 |
| Toolholder Style | KGD |
| Insert Holding Method | Screw |
| Insert Compatibility | GDG6?; GDG5?; GDM6?; GDM5?; GDMS6?; GDGS5?; GDMS5?; GDGS6? |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Series | KGD |
| Overall Length (Decimal Inch) | 5.9000 |
| Multi-use Tool | Yes |
| Vibration Dampening | No |
| Multi-Use Application | Cut-Off; External Grooving |
| Manufacturers Catalog Number | KGDR165T17 |
| Toolholder Material | Steel |
| Coolant Through | No |
