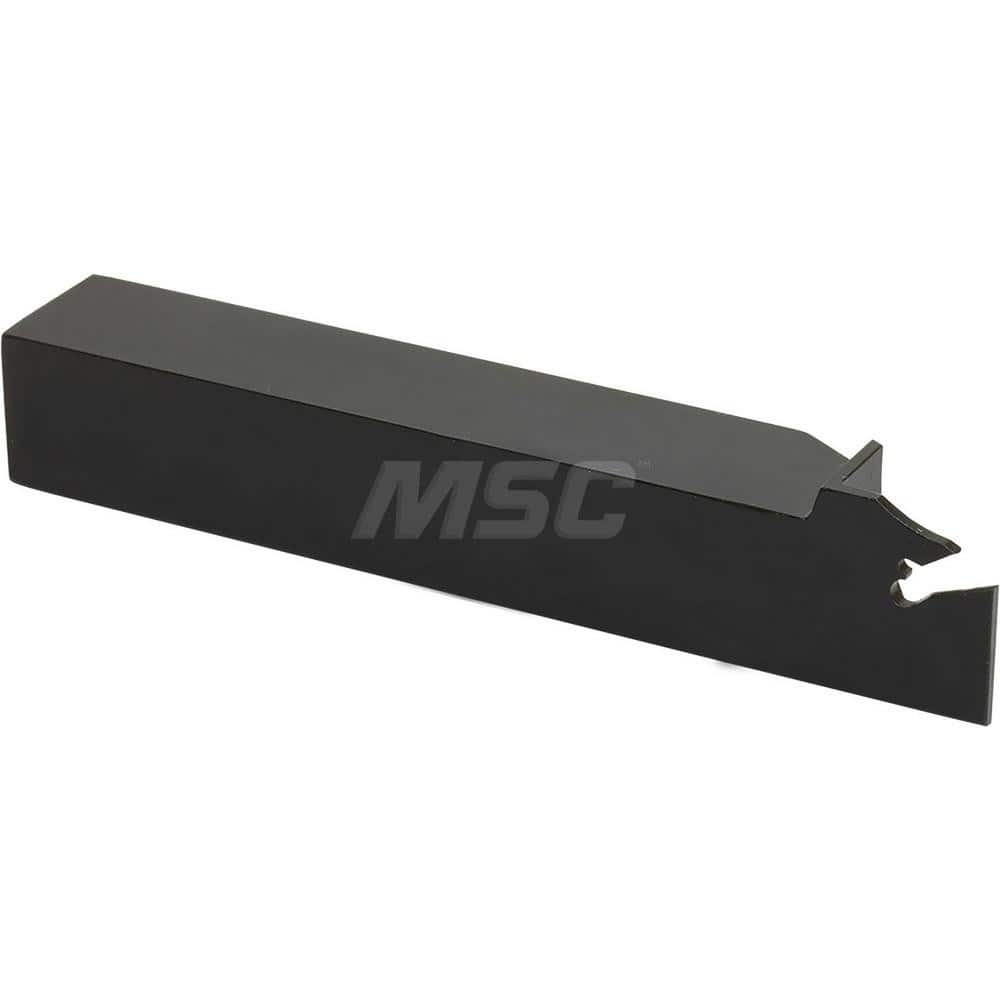

Indexable Cutoff Toolholder: 16.5 mm Max Depth of Cut, 33 mm Max Workpiece Dia, Left Hand 12 mm Shank Height, 12 mm Shank Width, Uses TKN2, TKN2.4, TKN2-P, TKL2, TKL2.4 & TKL2-P Inserts, Series KTKC
Item #: 18291435
Brand: Kyocera
Model #: THP06025
Product Specifications
| Hand of Holder | Left |
| Maximum Depth of Cut (mm) | 16.50 |
| Maximum Workpiece Diameter (mm) | 33.00 |
| Toolholder Style | KTKH |
| Compatible Insert Size Code | TKN2-P; TKL2.4; TKL2; TKL2-P; TKN2; TKN2.4 |
| Overall Length (mm) | 100.00 |
| Insert Holding Method | Self Clamp |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Height (mm) | 12.00 |
| Series | KTKC |
| Complete Insert Compatibility | TKN2-P; TKL2.4; TKL2; TKL2-P; TKN2; TKN2.4 |
| Coolant Through | No |
