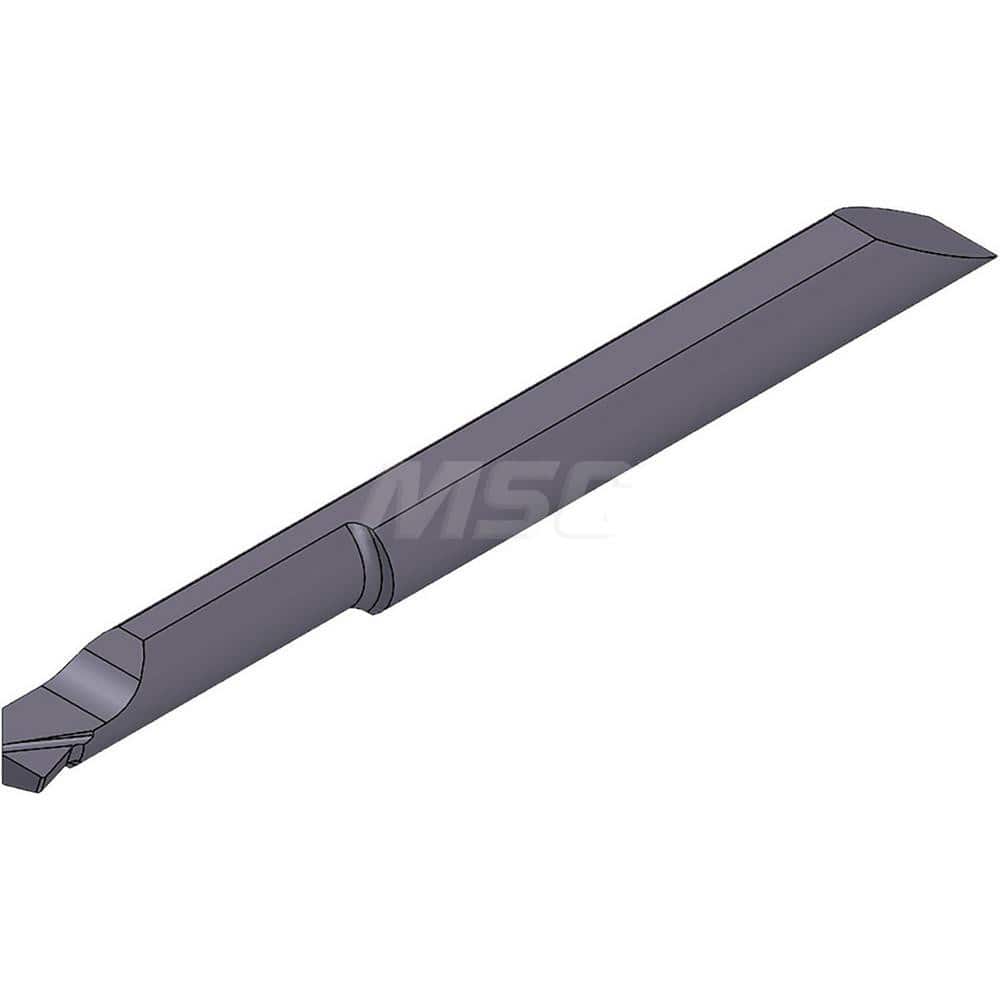

Boring Bar: 4 mm Min Bore, 16 mm Max Depth, Right Hand Cut, Carbide 4 mm Shank Dia, 44.60 mm OAL, 0.08 mm Corner Radius
Item #: 18291690
Brand: Kyocera
Model #: TKB40017
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (mm) | 4.00 |
| Material | Carbide |
| Maximum Bore Depth (mm) | 16.00 |
| Shank Diameter (mm) | 4.00 |
| Overall Length (mm) | 44.60 |
| Finish Coating | Megacoat |
| Corner Radius (mm) | 0.08 |
| Bar End Angle | 30 |
| Manufacturer Grade | PR1225 |
| Series | EZB |
| Coating Process | PVD |
| Manufacturers Catalog Number | EZBFR040040008PR1225 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
