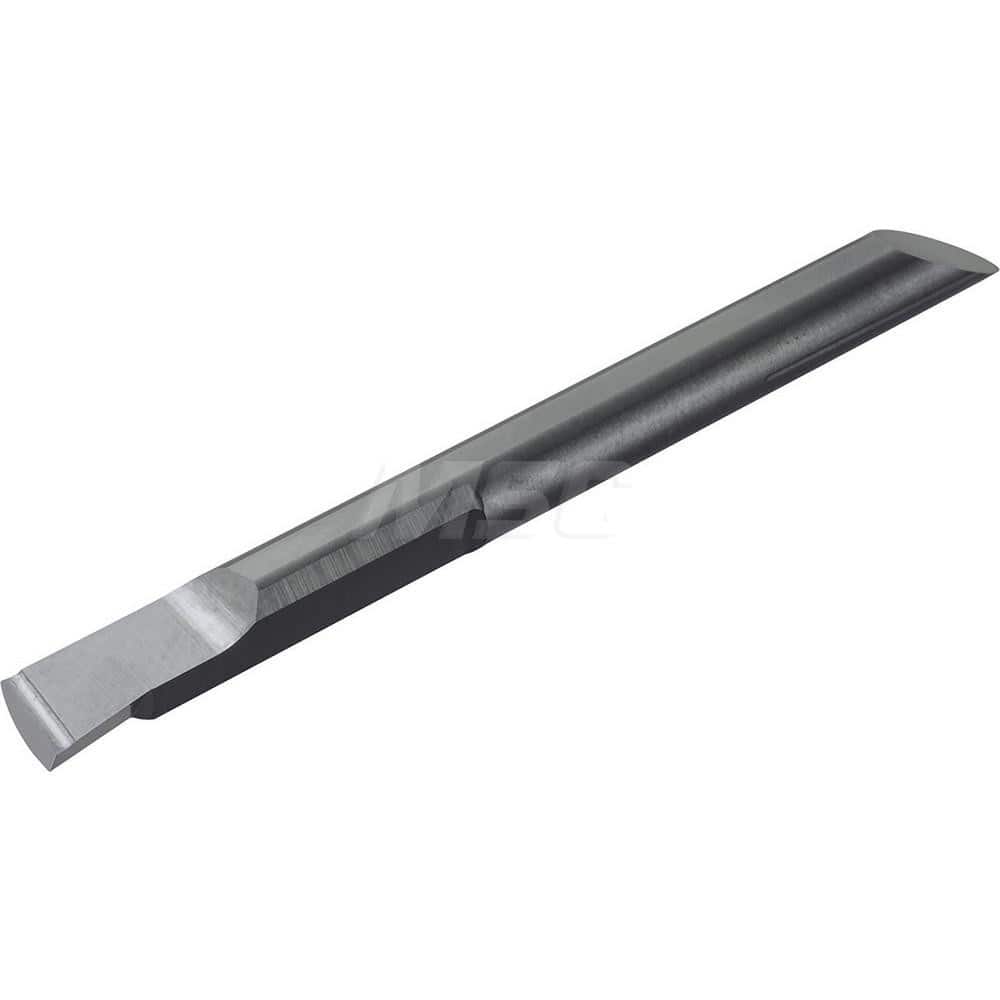

Boring Bar: 3 mm Min Bore, 10.5 mm Max Depth, Right Hand Cut, Carbide 2.50 mm Shank Dia, 35 mm OAL, 0.15 mm Corner Radius
Item #: 18292789
Brand: Kyocera
Model #: TLM40296
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (mm) | 3.00 |
| Material | Carbide |
| Maximum Bore Depth (mm) | 10.50 |
| Shank Diameter (mm) | 2.50 |
| Overall Length (mm) | 35.00 |
| Finish Coating | Megacoat Nano Plus |
| Corner Radius (mm) | 0.15 |
| Bar End Angle | 30 |
| Manufacturer Grade | PR1725 |
| Series | EZB |
| Coating Process | PVD |
| Manufacturers Catalog Number | EZBR030025ST015HPR1725 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
