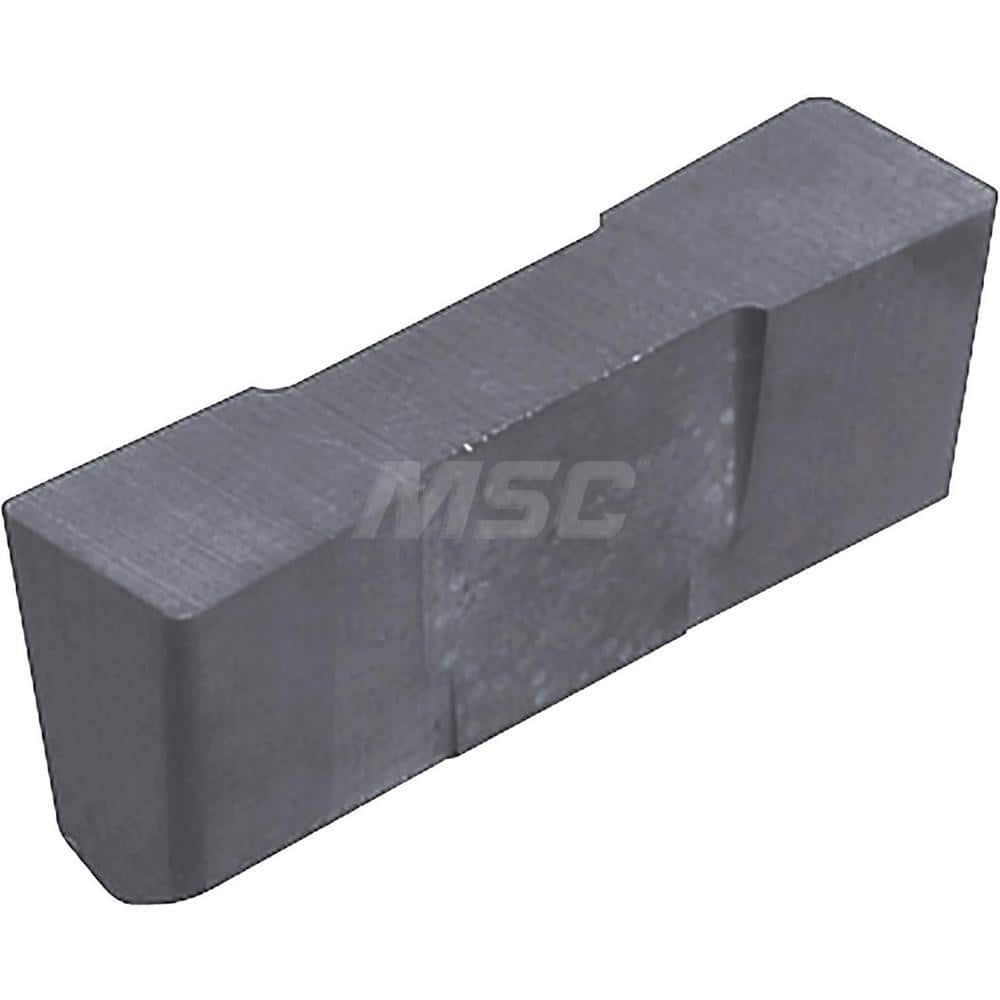

Grooving Insert: GH702002 KW10, Solid Carbide Co & WC Finish, Neutral, 7 mm Cutting Width, 13 mm Max Depth, Series KGH
Item #: 18292953
Brand: Kyocera
Model #: TWE01160
Product Specifications
| Insert Style | GH |
| Insert Size | 702002 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KW10 |
| Cutting Width (mm) | 7.00 |
| Maximum Depth of Cut (mm) | 13.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 7.50 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.20 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | External Deep Grooving; External Grooving; Internal Large Diameter Deep Grooving |
| Series | KGH |
| Rake Angle | 20.00 |
| Iso Code | GH7020-02 |
| Manufacturers Catalog Number | GH702002KW10 |
| Minimum Groove Width (mm) | -0.05 |
| Maximum Groove Width (mm) | 0.05 |
| Full Radius | No |
| Overall Width | 7.00 |
| Coating/Finish | Co; WC |
| Number Of Cutting Edges | 2 |
