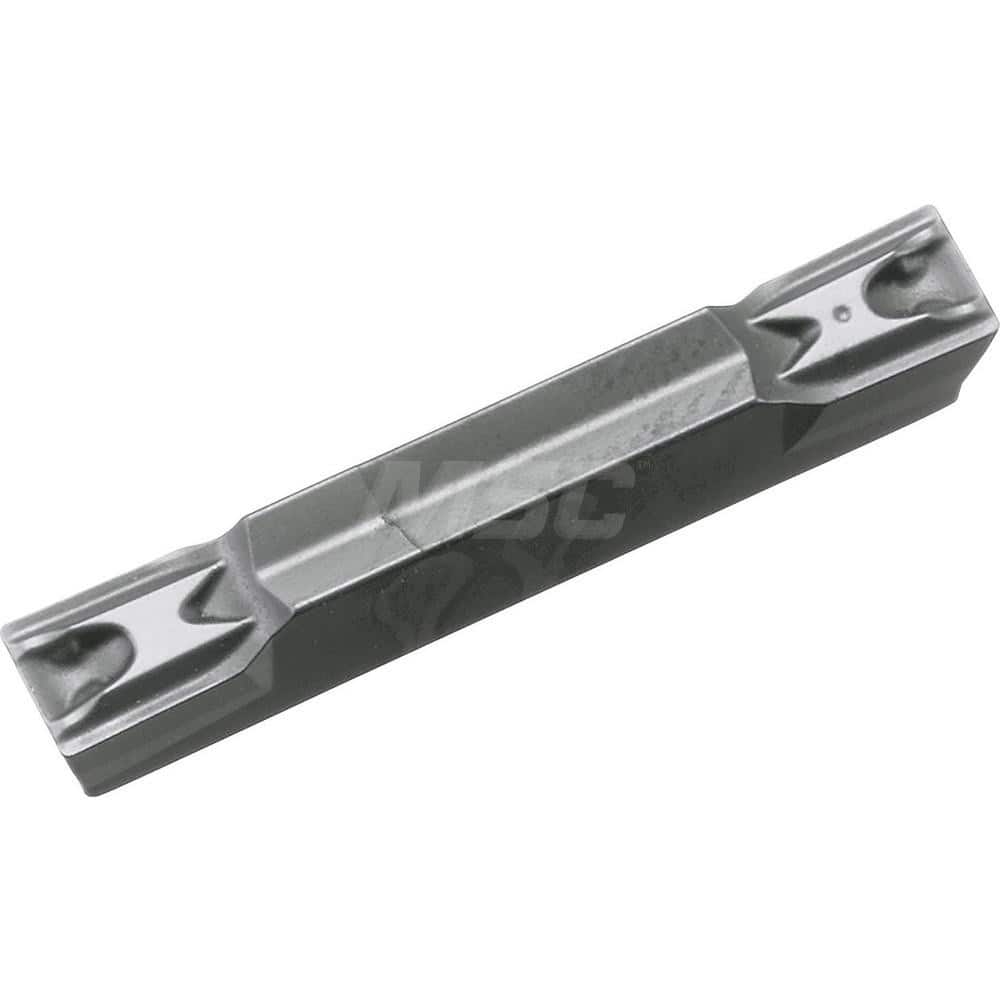

Grooving Insert: GDM2420GL TN90, Cermet Neutral, 2.4 mm Cutting Width, 17 mm Max Depth, Series KGD
Item #: 18293159
Brand: Kyocera
Model #: TSO10640
Product Specifications
| Insert Style | GDM |
| Insert Size | 2420 |
| Insert Material | Cermet |
| Manufacturer Grade | TN90 |
| Cutting Width (mm) | 2.40 |
| Maximum Depth of Cut (mm) | 17.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.20 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Traversing; External Grooving |
| Series | KGD |
| Iso Code | GDM2420N020GLTN90 |
| Manufacturers Catalog Number | GDM2420N020GLTN90 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Chip Breaker | GL |
| Full Radius | No |
| Overall Width | 2.40 |
| Number Of Cutting Edges | 2 |
