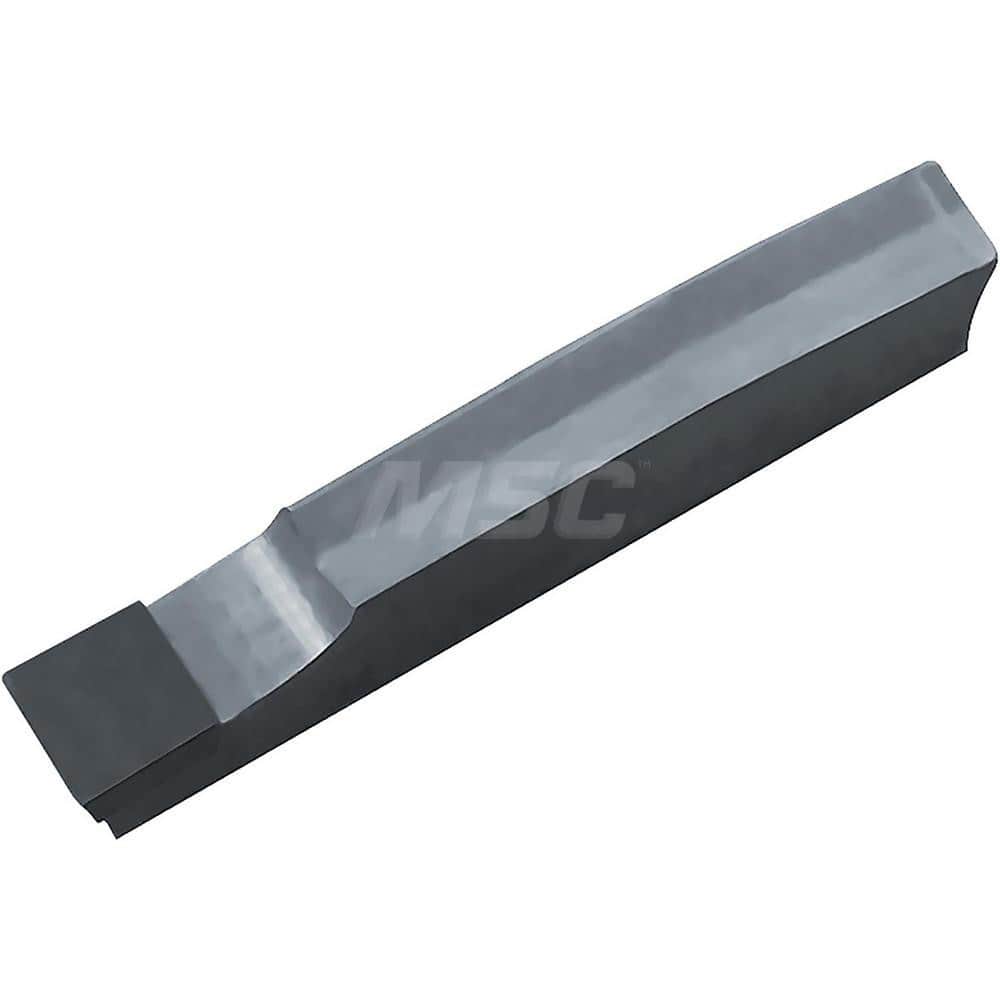

Grooving Insert: GDGS3020 KBN570, Cubic Boron Nitride Neutral, 3 mm Cutting Width, 25.5 mm Max Depth, Series KGD
Item #: 18293241
Brand: Kyocera
Model #: TBT10741
Product Specifications
| Insert Style | GDGS |
| Insert Size | 3020 |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | KBN570 |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (mm) | 25.50 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.40 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | External Grooving |
| Series | KGD |
| Iso Code | GDGS3020N040NBKBN570 |
| Manufacturers Catalog Number | GDGS3020N040NBKBN570 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Full Radius | No |
| Overall Width | 3.00 |
| Number Of Cutting Edges | 1 |
