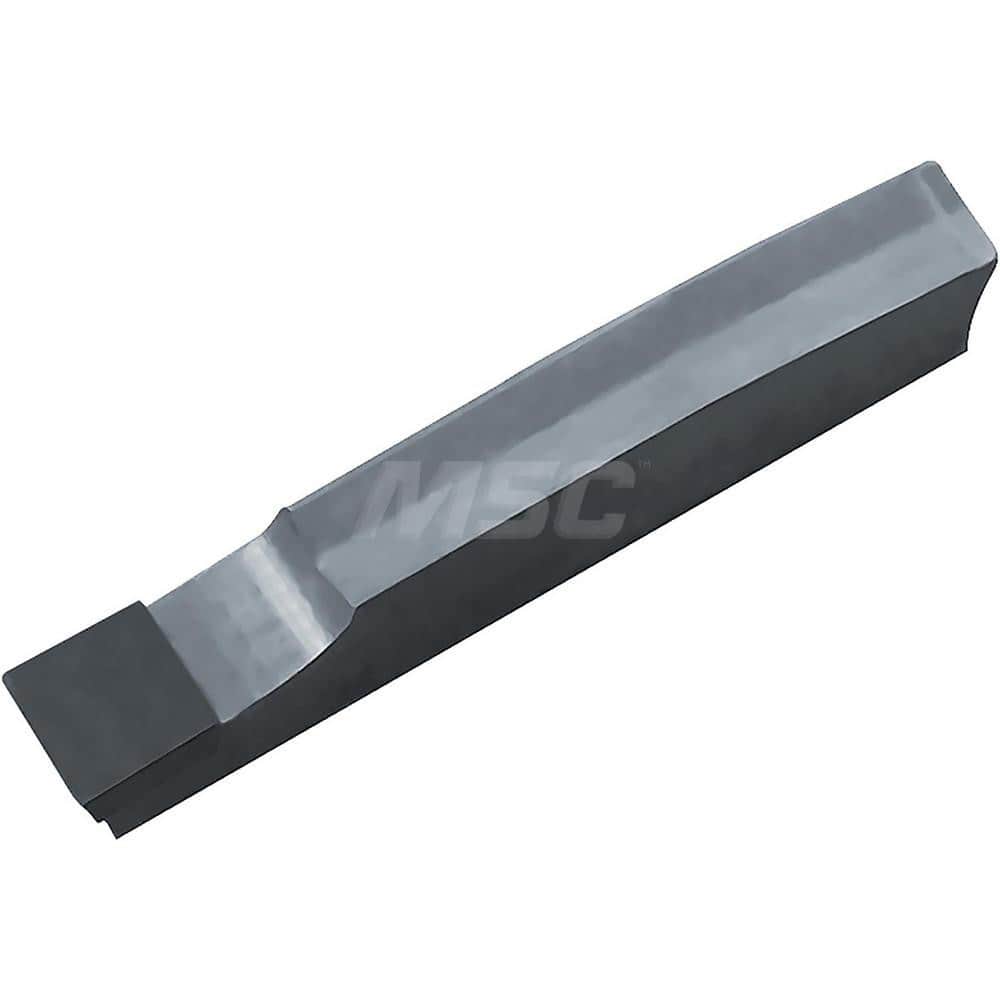

Grooving Insert: GDGS2020 KPD001, Polycrystalline Diamond Neutral, 2 mm Cutting Width, 17 mm Max Depth, Series KGD
Item #: 18293290
Brand: Kyocera
Model #: TBR10740
Product Specifications
| Insert Style | GDGS |
| Insert Size | 2020 |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | KPD001 |
| Cutting Width (mm) | 2.00 |
| Maximum Depth of Cut (mm) | 17.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.20 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | External Deep Grooving; External Grooving |
| Series | KGD |
| Iso Code | GDGS2020N020NBKPD001 |
| Manufacturers Catalog Number | GDGS2020N020NBKPD001 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Full Radius | No |
| Overall Width | 2.00 |
| Number Of Cutting Edges | 1 |
