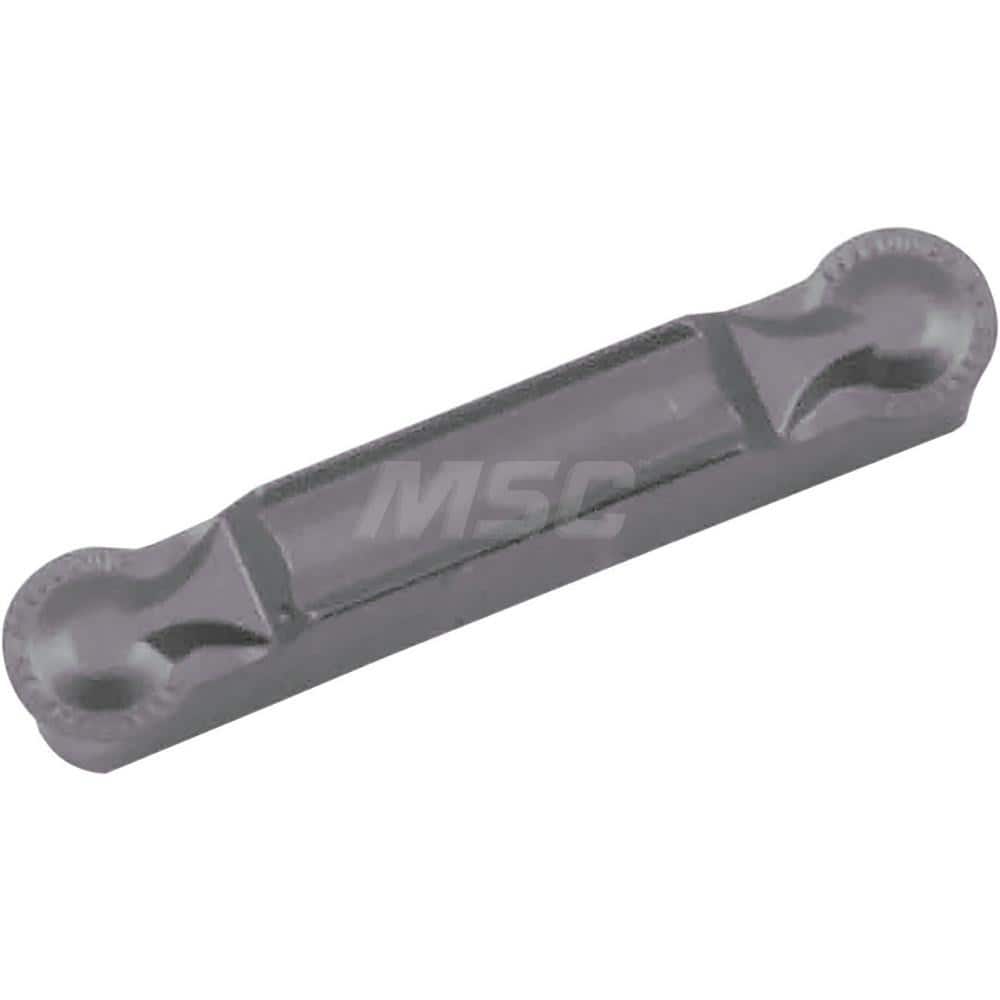

Grooving Insert: GDFM4020CM PR1215, Solid Carbide Megacoat, Neutral, 4 mm Cutting Width, 25 mm Max Depth, Series KGD
Item #: 18293464
Brand: Kyocera
Model #: TKH10813
Product Specifications
| Insert Style | GDFM |
| Insert Size | 4020 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1215 |
| Cutting Width (mm) | 4.00 |
| Maximum Depth of Cut (mm) | 25.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.50 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 2.00 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Face Grooving |
| Series | KGD |
| Coating Process | PVD |
| Iso Code | GDFM4020N-200R-CM |
| Manufacturers Catalog Number | GDFM4020N200RCMPR1215 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Chip Breaker | CM |
| Full Radius | Yes |
| Overall Width | 4.00 |
| Coating/Finish | Megacoat |
| Number Of Cutting Edges | 2 |
