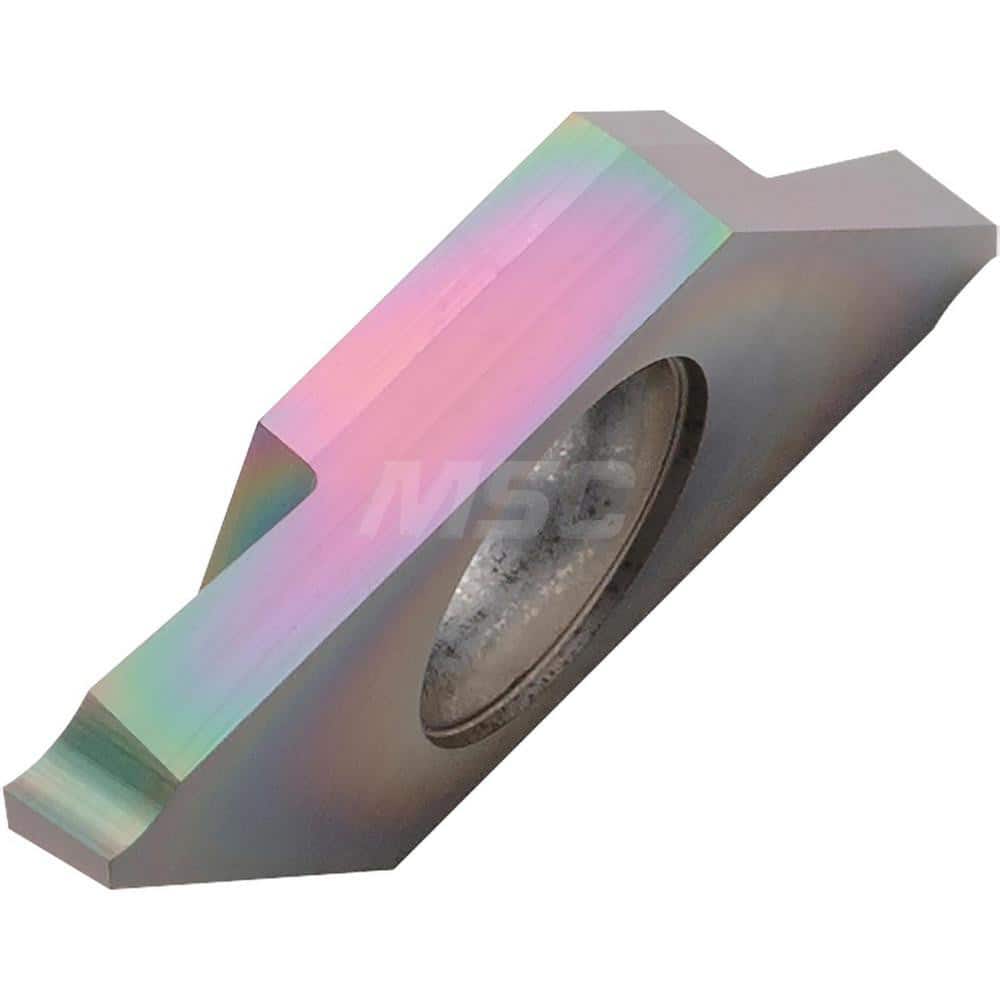

Cut-Off Inserts; Insert Style: TKF; Insert Size Code: 12; Insert Material: Solid Carbide; Manufacturer Grade: PDL025; Cutting Width (mm): 1.00; Insert Holding Method: Screw; Lead Angle Direction: Neutral; Insert Hand: Right Hand; Lead Angle: 0; Relief Ang
Item #: 18296558
Brand: Kyocera
Model #: TLE16008
Product Specifications
| Insert Style | TKF |
| Insert Size Code | 12 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PDL025 |
| Cutting Width (mm) | 1.00 |
| Insert Holding Method | Screw |
| Lead Angle Direction | Neutral |
| Insert Hand | Right Hand |
| Lead Angle | 0 |
| Relief Angle | 0.00 |
| Corner Radius (mm) | 0.03 |
| Chipbreaker | S |
| Series | KTKF |
| Coating Process | DLC |
| Manufacturers Catalog Number | TKF12R100SPDL025 |
| Maximum Depth of Cut (mm) | 6.00 |
| Insert Height (Decimal Inch) | 0.3425 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.00 |
