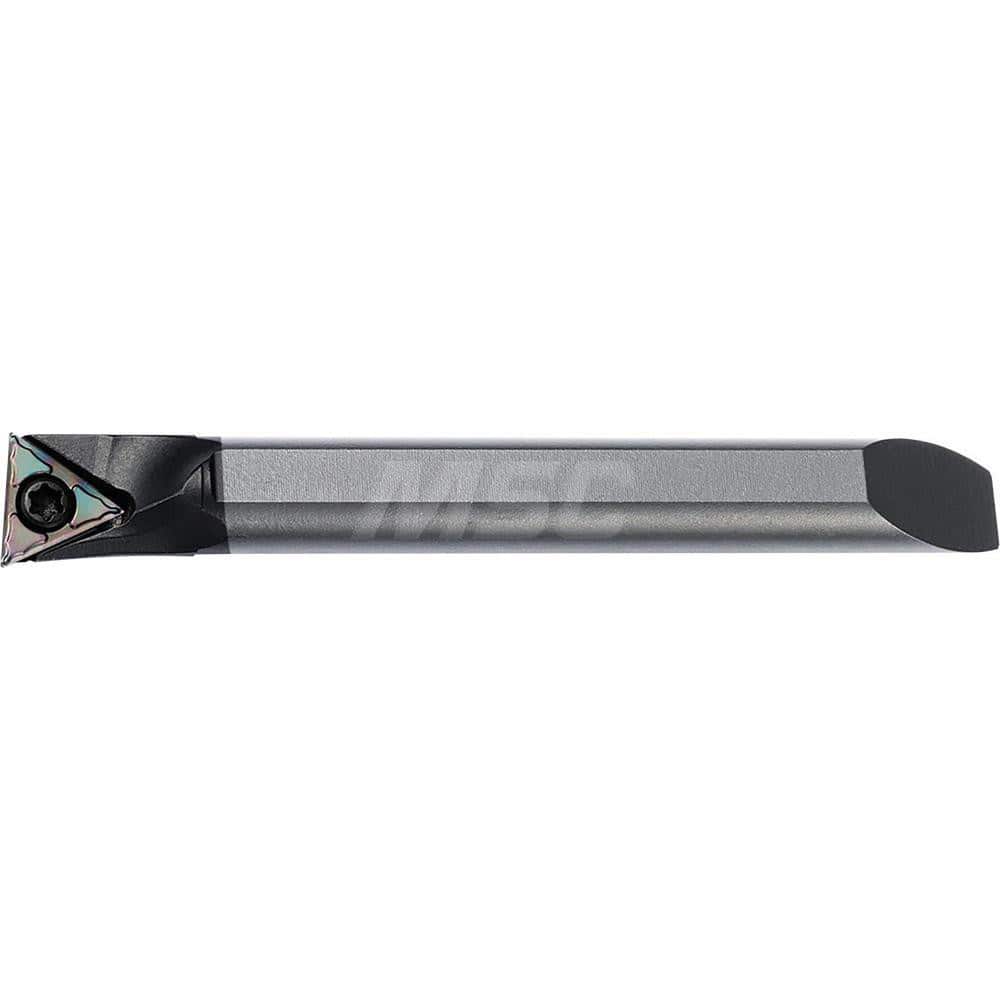

Indexable Boring Bar: S070XSTLBR06080EZP, 8.00 mm Min Bore, 7.00 mm Shank Dia, N/A Steel Screw, Uses TBGT121 ™, TBMT121 ™, TBGW121 ™ & TBMT121 ™ Inserts
Item #: 18299164
Brand: Kyocera
Model #: THC14606
Product Specifications
| Minimum Bore Diameter (mm) | 8.00 |
| Maximum Bore Depth (mm) | 21.00 |
| Toolholder Style | S...STLB |
| Tool Material | Steel |
| Insert Compatibility | TBMT121?; TBGW121?; TBGT121? |
| Shank Diameter (mm) | 7.00 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 60.40 |
| Insert Holding Method | Screw |
| Series | EZB |
| Multi-use Tool | No |
| Center to Cutting Edge (mm) | 4.00 |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Manufacturers Catalog Number | S070XSTLBR06080EZP |
| Manufacturer's Part Number | S070XSTLBR06080EZP |
| Coolant Through | No |
