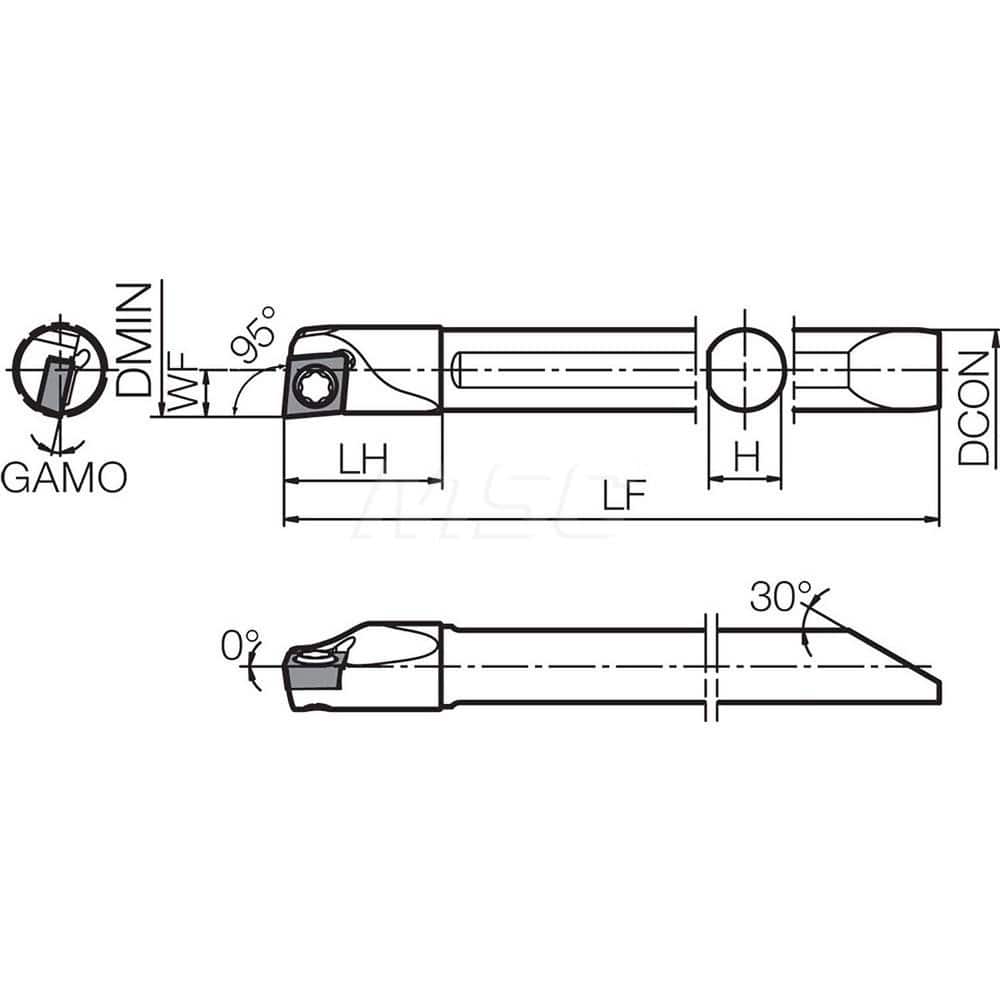

Indexable Boring Bar: S060XSCLCR04070EZP, 7.00 mm Min Bore, 6.00 mm Shank Dia, N/A Steel Screw, Uses CCGT1411 ™, CCET1411 ™, CCGW1411 ™ & CCMW1411 ™ Inserts
Item #: 18299180
Brand: Kyocera
Model #: THC14603
Product Specifications
| Minimum Bore Diameter (mm) | 7.00 |
| Maximum Bore Depth (mm) | 18.00 |
| Toolholder Style | S...SCLC |
| Tool Material | Steel |
| Insert Compatibility | CCGW1411?; CCMW1411?; CCGT1411?; CCET1411? |
| Shank Diameter (mm) | 6.00 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 54.40 |
| Insert Holding Method | Screw |
| Series | EZB |
| Multi-use Tool | No |
| Center to Cutting Edge (mm) | 3.50 |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Manufacturers Catalog Number | S060XSCLCR04070EZP |
| Manufacturer's Part Number | S060XSCLCR04070EZP |
| Coolant Through | No |
