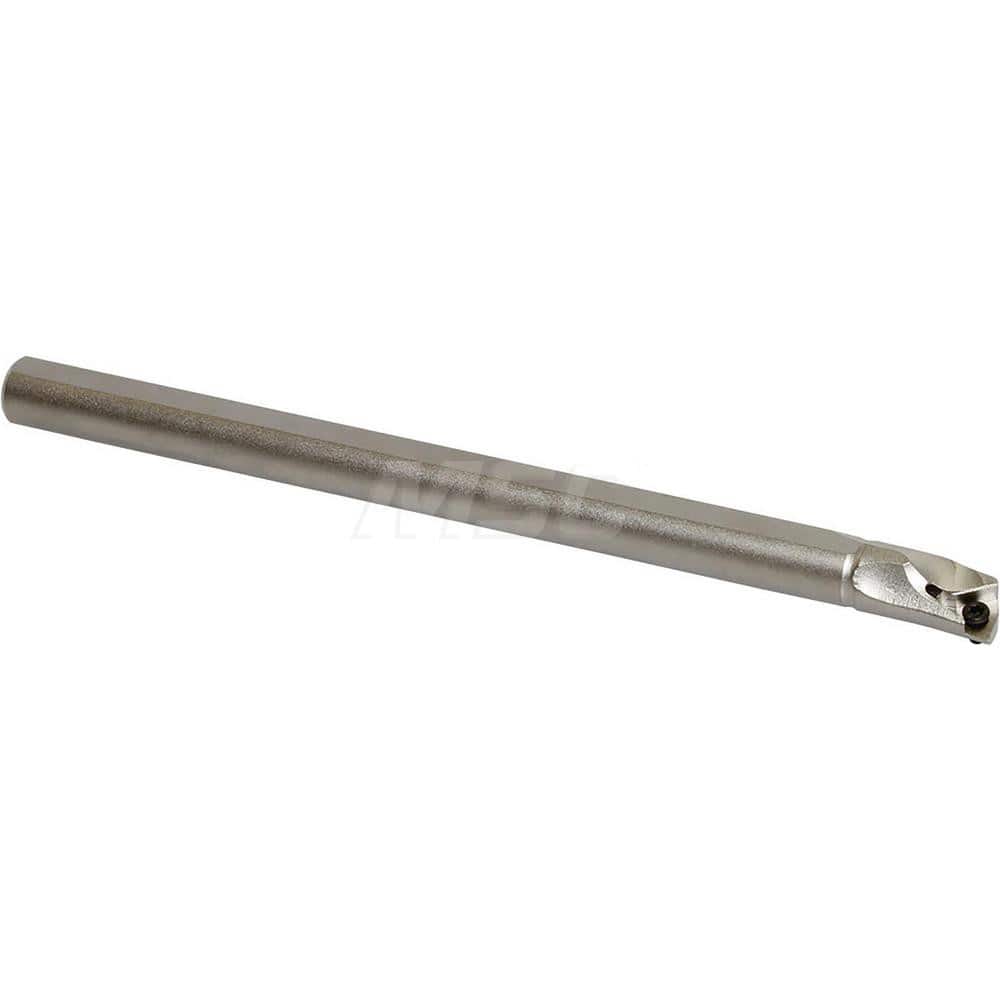

Indexable Boring Bar: A12MSWUPL1114AE, 14.00 mm Min Bore, 12.00 mm Shank Dia, N/A Steel Screw, Uses WPMT215 ™ & WPGW215 ™ Inserts
Item #: 18299818
Brand: Kyocera
Model #: THC11945
Product Specifications
| Minimum Bore Diameter (mm) | 14.00 |
| Maximum Bore Depth (mm) | 60.00 |
| Toolholder Style | A...SWUP |
| Tool Material | Steel |
| Insert Compatibility | WPMT215?; WPGW215? |
| Shank Diameter (mm) | 12.00 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 150.00 |
| Insert Holding Method | Screw |
| Series | DYNB |
| Multi-use Tool | No |
| Center to Cutting Edge (mm) | 7.00 |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Coolant Hole Diameter (mm) | 4.00 |
| Manufacturers Catalog Number | A12MSWUPL1114AE |
| Manufacturer's Part Number | A12MSWUPL1114AE |
| Coolant Through | Yes |
