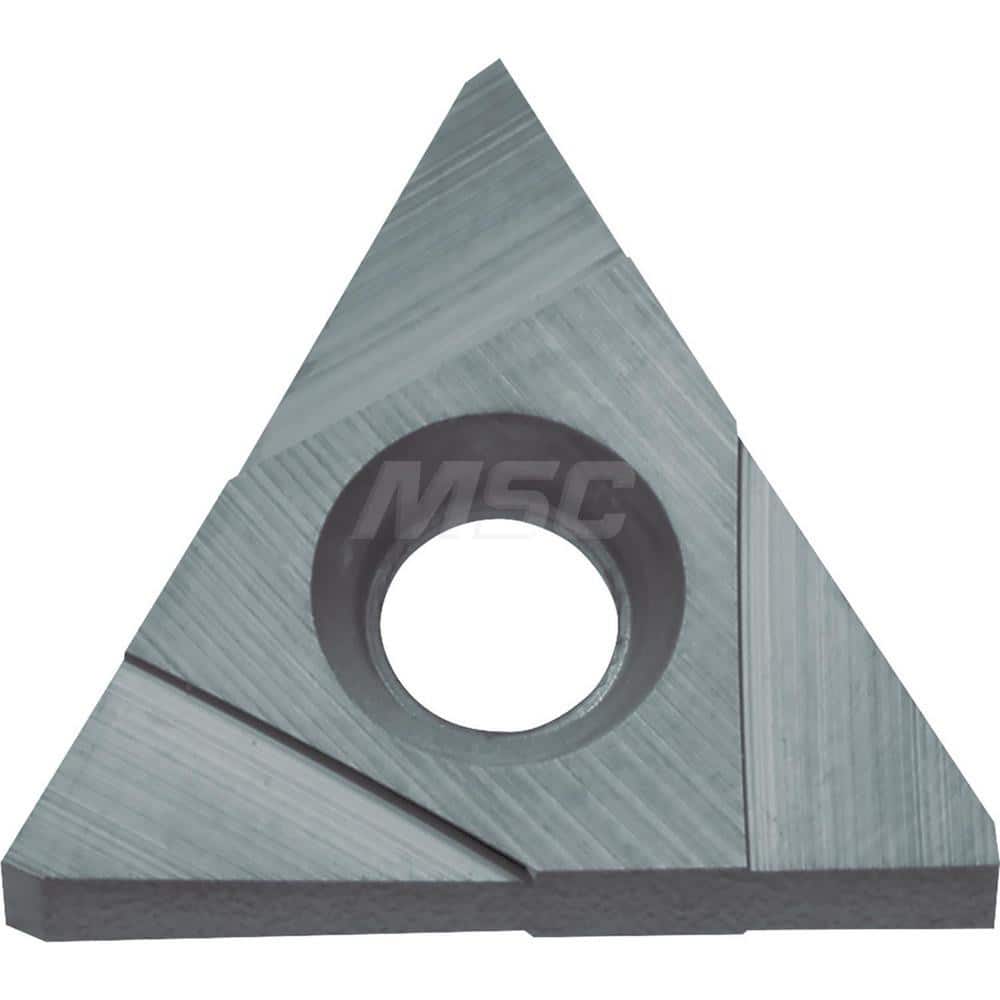

Grooving Insert: TNMC43NG TN60, Cermet TiCN & NbC Finish, Right Hand, 3.18 mm Cutting Width, 5.94 mm Max Depth, Series STVP
Item #: 18312462
Brand: Kyocera
Model #: TSJ89182
Product Specifications
| Insert Style | TNMC |
| Insert Size | 43 |
| Insert Material | Cermet |
| Manufacturer Grade | TN60 |
| Cutting Width (mm) | 3.18 |
| Maximum Depth of Cut (mm) | 5.94 |
| Insert Holding Method | Screw |
| Cutting Height (Inch) | 3/16 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.10 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Lead Angle | 0 |
| Rake | Negative |
| Cutting Tool Application | External Grooving |
| Series | STVP |
| Iso Code | TNMC43NGR125TN60 |
| Manufacturers Catalog Number | TNMC43NGR125TN60 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Chip Breaker | NG |
| Full Radius | No |
| Overall Width | 4.76 |
| Coating/Finish | TiCN; NbC |
| Number Of Cutting Edges | 3 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
