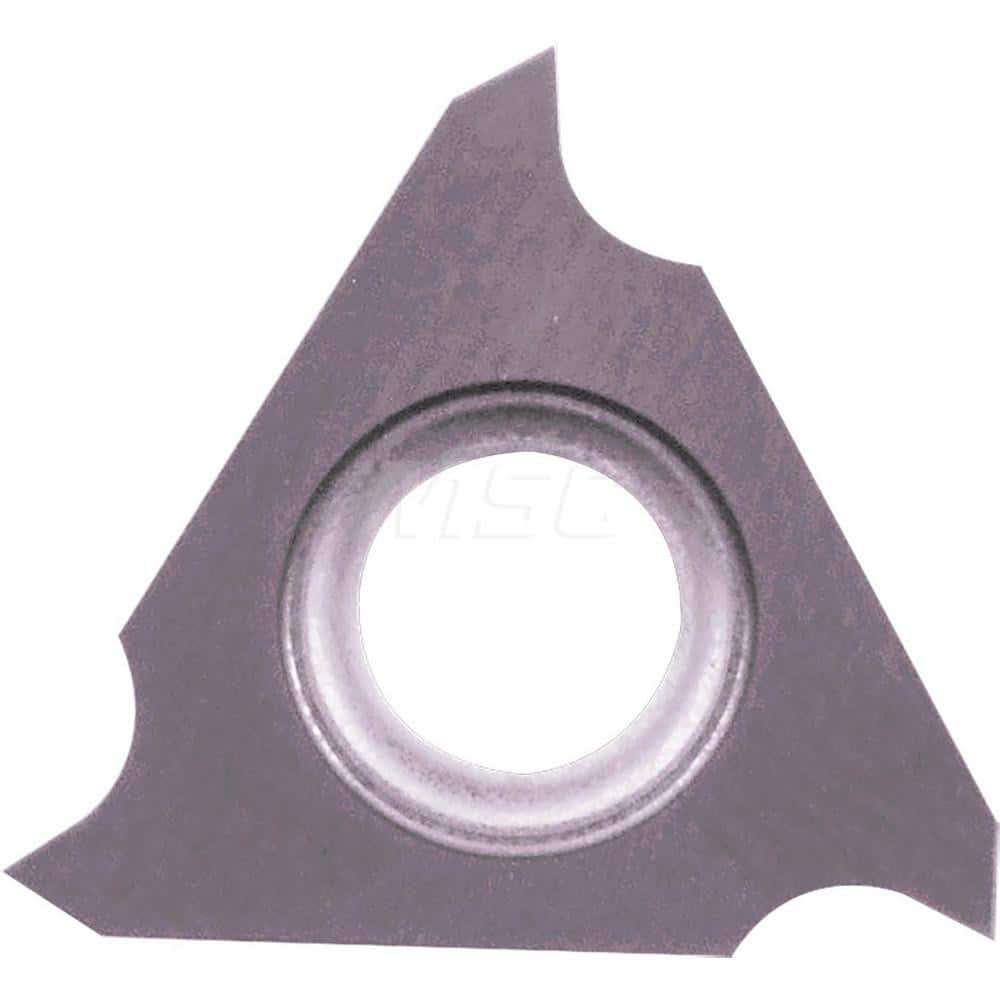

Grooving Insert: GBF32 PR1535, Solid Carbide Megacoat Nano Finish, Right Hand, 3 mm Cutting Width, 3 mm Max Depth, Series GBF
Item #: 18312579
Brand: Kyocera
Model #: TLC18845
Product Specifications
| Insert Style | GBF |
| Insert Size | 32 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1535 |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (mm) | 3.00 |
| Insert Holding Method | Screw |
| Cutting Height (Inch) | 1/8 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.10 |
| Maximum Depth Of Cut Range (mm) | 3.00 to 4.00 |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | External Grooving |
| Series | GBF |
| Coating Process | PVD |
| Iso Code | GBF32R300-010 |
| Manufacturers Catalog Number | GBF32R300010PR1535 |
| Minimum Groove Width (mm) | -0.02 |
| Maximum Groove Width (mm) | 0.02 |
| Full Radius | No |
| Overall Width | 3.18 |
| Coating/Finish | Megacoat Nano |
| Number Of Cutting Edges | 3 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.18 |
