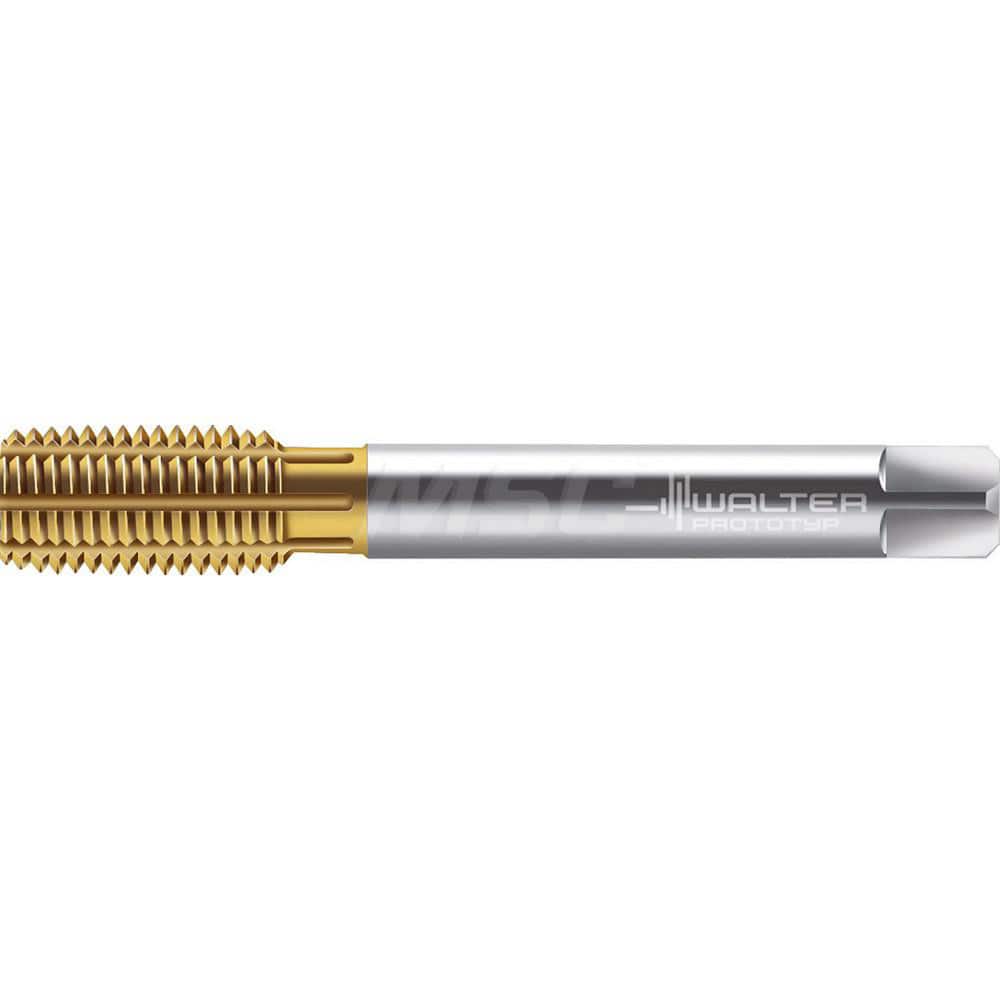

Thread Forming Tap: DIN 2174, 6HX Class of Fit, 2 to 3, High Speed Steel, TiN Finish Series TC410
Item #: 18337931
Brand: Walter-Prototyp
Model #: 7427587
Product Specifications
| Thread Size (mm) | MF16 x 1.50 |
| Overall Length (mm) | 100.00 |
| Chamfer | 2 to 3 |
| Coating/Finish | TiN |
| Thread Standard | DIN 2174 |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (Mm) ( - 3 Decimals) | 21.00 |
| Series | TC410 |
| Tap Type | Thread Forming |
| Class Of Fit | 6HX |
