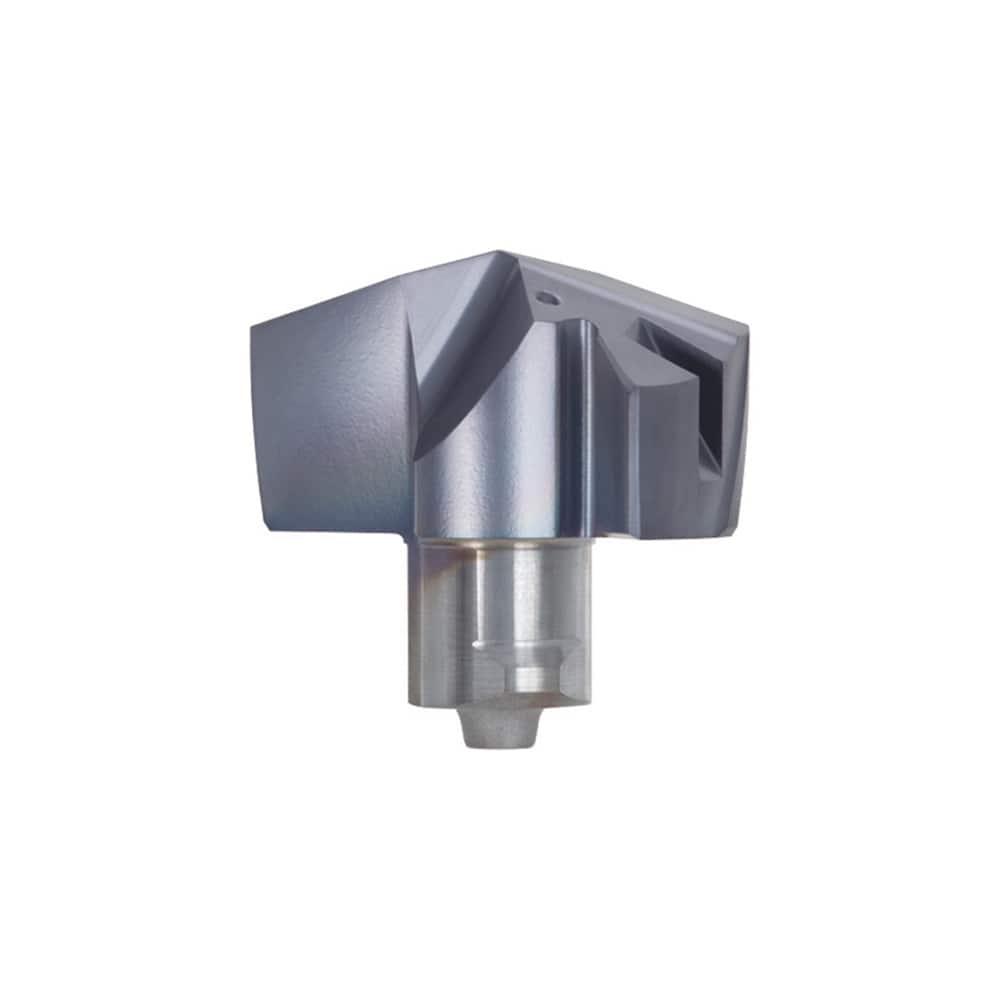

DMP0750 AH725 Carbide Replaceable Tip Drill TiAlN Finish, 140° Included Angle, 3/4″ Diam, 10.8mm High, Series DrillMeister
Item #: 18394619
Brand: Tungaloy
Model #: 5568912
Product Specifications
| Diameter (Decimal Inch) | 0.7500 |
| Point Angle | 140 |
| Diameter (Inch) | 3/4 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | AH725 |
| Series | DrillMeister |
| Coating Process | PVD |
| Insert Seat Size | 19 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Height (Decimal Inch) | 0.4250 |
| Height (mm) | 10.80 |
| Head Length (Decimal Inch) | 0.4250 |
| Web Thinning | X-Thinned |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Insert Holding Method | Self Clamp |
| Overall Length (mm) | 10.80 |
| Coolant Through | No |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Flute Length (mm) | 10.80 |
| Point Type | Chisel |
| Spiral Type | Slow |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
