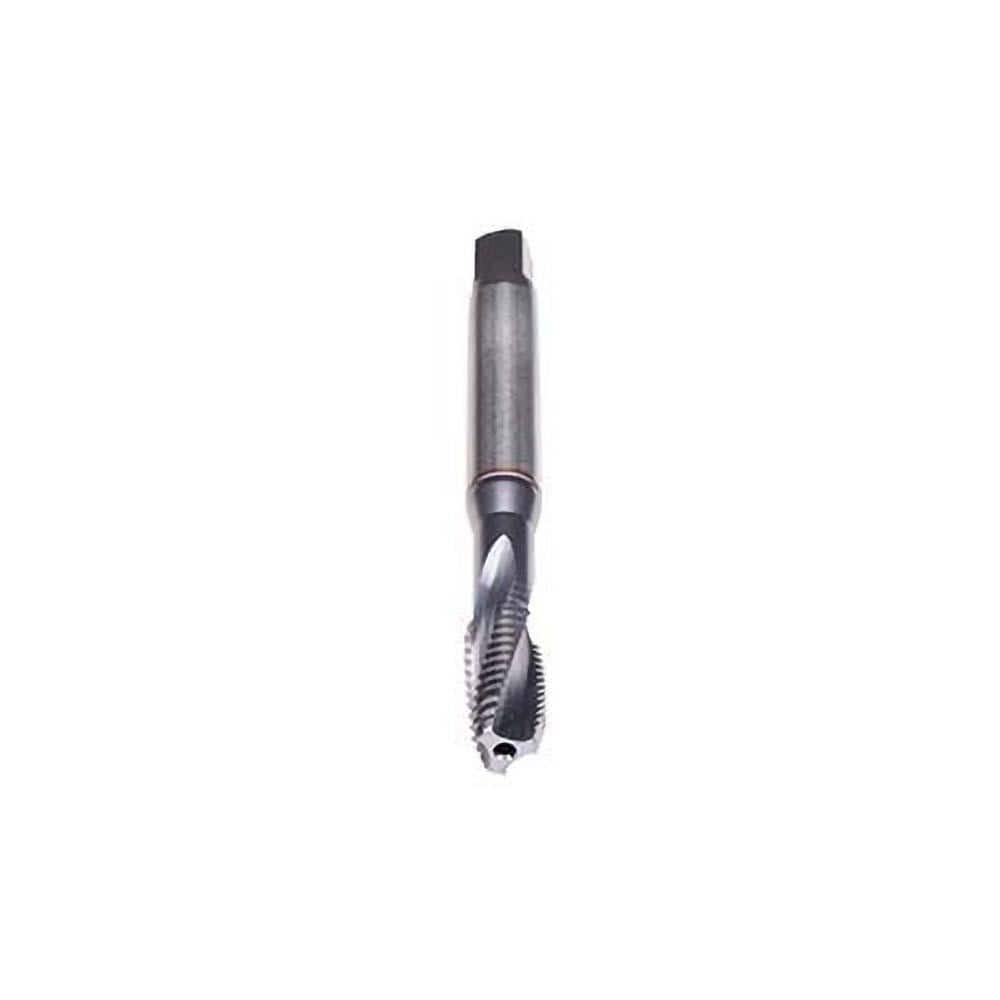

Spiral Flute Tap: #1-8, UNC, 3 Flute, Modified Bottoming, 2B Class of Fit, Cobalt, TICN Finish 1.417″ Thread Length, 6.299″ OAL, Right Hand Flute, Right Hand Thread, H7, Series CU979000
Item #: 18458794
Brand: Emuge
Model #: CU979000.5018
Product Specifications
| Material | Cobalt |
| Coating/Finish | TICN |
| Thread Size (Inch - 0 Decimals) | #1-8 |
| Thread Standard | UNC |
| Thread Limit | H7 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.4170 |
| Overall Length (Decimal Inch) | 6.2990 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 15 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.8000 |
| Square Size (Decimal Inch) | 0.6000 |
| Flute Style | Slow |
| Material Application | Non-Ferrous Metal; Cast Iron; Steel |
| Series | CU979000 |
| Coolant Through | Yes |
| Teeth per Inch | 8 |
| Number Of Flutes | 3 |
| Class Of Fit | 2B |
