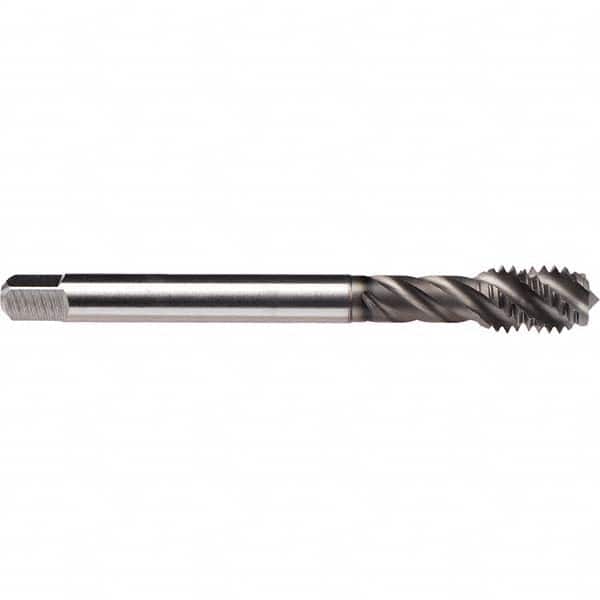

Spiral Flute Tap: 1/2-20, UNF, 5 Flute, Bottoming, 3B Class of Fit, Cobalt, GLT-1 Finish 0.512″ Thread Length, 3.937″ OAL, Right Hand Flute, Right Hand Thread, H3, Series CU51C410
Item #: 18458802
Brand: Emuge
Model #: CU51C410.5047
Product Specifications
| Material | Cobalt |
| Coating/Finish | GLT-1 |
| Thread Size (Inch - 0 Decimals) | 1/2-20 |
| Thread Standard | UNF |
| Thread Limit | H3 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.5120 |
| Overall Length (Decimal Inch) | 3.9370 |
| Chamfer | Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Square Size (Decimal Inch) | 0.2750 |
| Flute Style | Fast |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel; Titanium Alloy |
| Series | CU51C410 |
| Coolant Through | No |
| Teeth per Inch | 20 |
| Number Of Flutes | 5 |
| Class Of Fit | 3B |
