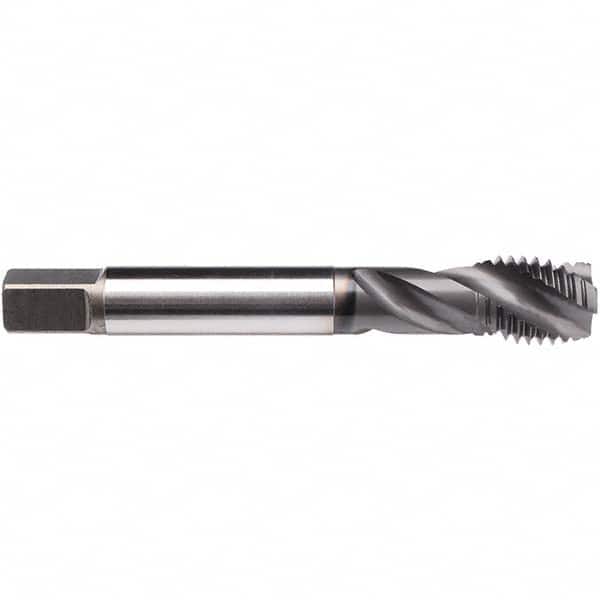

Spiral Flute Tap: 1-1/8-12, UNF, 4 Flute, Modified Bottoming, 3B Class of Fit, Cobalt, GLT-1 Finish 1.181″ Thread Length, 5.906″ OAL, Right Hand Flute, Right Hand Thread, H5, Series CU50C310
Item #: 18459610
Brand: Emuge
Model #: CU50C310.5053
Product Specifications
| Material | Cobalt |
| Coating/Finish | GLT-1 |
| Thread Size (Inch - 0 Decimals) | 1-1/8-12 |
| Thread Standard | UNF |
| Thread Limit | H5 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.1810 |
| Overall Length (Decimal Inch) | 5.9060 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 35 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.8960 |
| Square Size (Decimal Inch) | 0.6720 |
| Flute Style | Fast |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | CU50C310 |
| Coolant Through | No |
| Teeth per Inch | 12 |
| Number Of Flutes | 4 |
| Class Of Fit | 3B |
