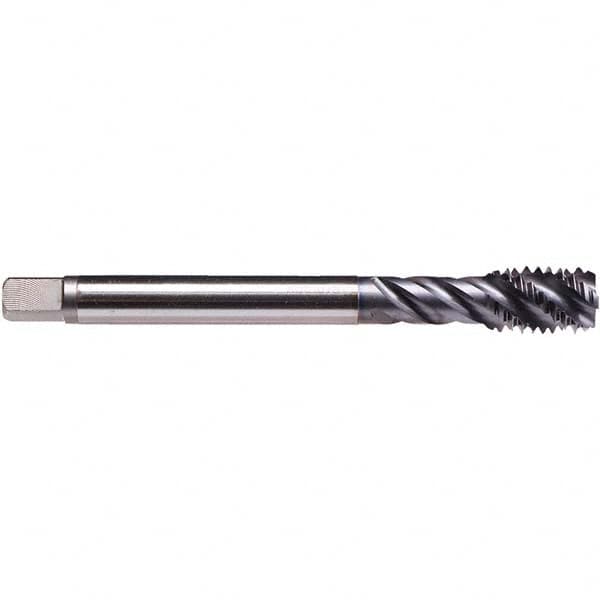

Spiral Flute Tap: #1-8, UNC, 3 Flute, Modified Bottoming, 2B Class of Fit, Cobalt, TICN Finish 1.181″ Thread Length, 6.299″ OAL, Right Hand Flute, Right Hand Thread, H7, Series CU999400
Item #: 18459750
Brand: Emuge
Model #: CU999400.5018
Product Specifications
| Material | Cobalt |
| Coating/Finish | TICN |
| Thread Size (Inch - 0 Decimals) | #1-8 |
| Thread Standard | UNC |
| Thread Limit | H7 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.1810 |
| Overall Length (Decimal Inch) | 6.2990 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.8000 |
| Square Size (Decimal Inch) | 0.6000 |
| Flute Style | Fast |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel; Titanium Alloy |
| Series | CU999400 |
| Coolant Through | No |
| Teeth per Inch | 8 |
| Number Of Flutes | 3 |
| Class Of Fit | 2B |
