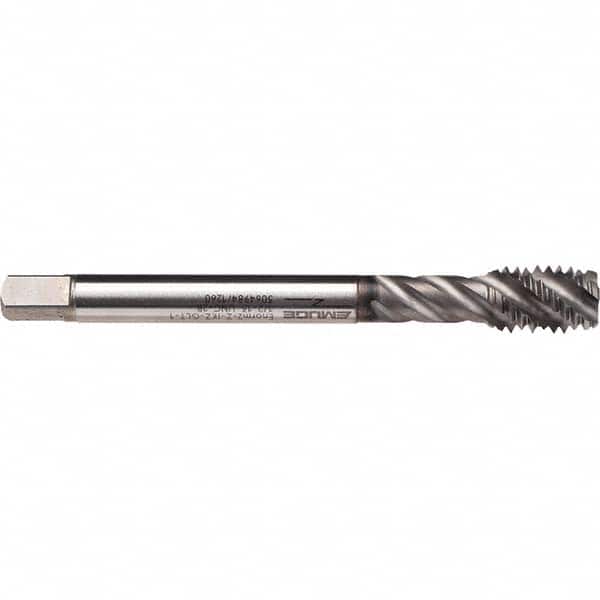

Spiral Flute Tap: 3/4-10, UNC, 4 Flute, Modified Bottoming, 3B Class of Fit, Cobalt, GLT-1 Finish 0.984″ Thread Length, 4.921″ OAL, Right Hand Flute, Right Hand Thread, H5, Series CU99C410
Item #: 18459776
Brand: Emuge
Model #: CU99C410.5016
Product Specifications
| Material | Cobalt |
| Coating/Finish | GLT-1 |
| Thread Size (Inch - 0 Decimals) | 3/4-10 |
| Thread Standard | UNC |
| Thread Limit | H5 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.9840 |
| Overall Length (Decimal Inch) | 4.9210 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Square Size (Decimal Inch) | 0.4420 |
| Flute Style | Fast |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel; Titanium Alloy |
| Series | CU99C410 |
| Coolant Through | Yes |
| Teeth per Inch | 10 |
| Number Of Flutes | 4 |
| Class Of Fit | 3B |
