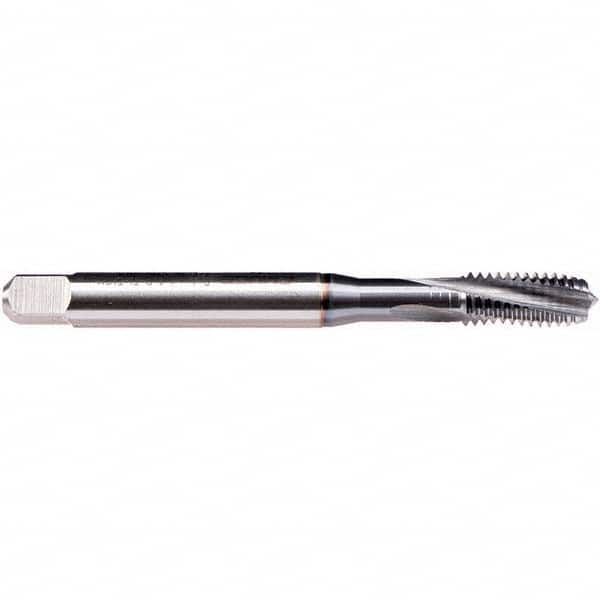

Spiral Flute Tap: 7/8-14, UNF, 4 Flute, Modified Bottoming, 3B Class of Fit, Cobalt, TICN Finish 1.024″ Thread Length, 4.921″ OAL, Right Hand Flute, Right Hand Thread, H4, Series CU459611
Item #: 18459859
Brand: Emuge
Model #: CU459611.5051
Product Specifications
| Material | Cobalt |
| Coating/Finish | TICN |
| Thread Size (Inch - 0 Decimals) | 7/8-14 |
| Thread Standard | UNF |
| Thread Limit | H4 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.0240 |
| Overall Length (Decimal Inch) | 4.9210 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 15 |
| Application | Through-Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.6970 |
| Square Size (Decimal Inch) | 0.5230 |
| Flute Style | Slow |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel; Titanium Alloy |
| Series | CU459611 |
| Coolant Through | No |
| Teeth per Inch | 14 |
| Number Of Flutes | 4 |
| Class Of Fit | 3B |
