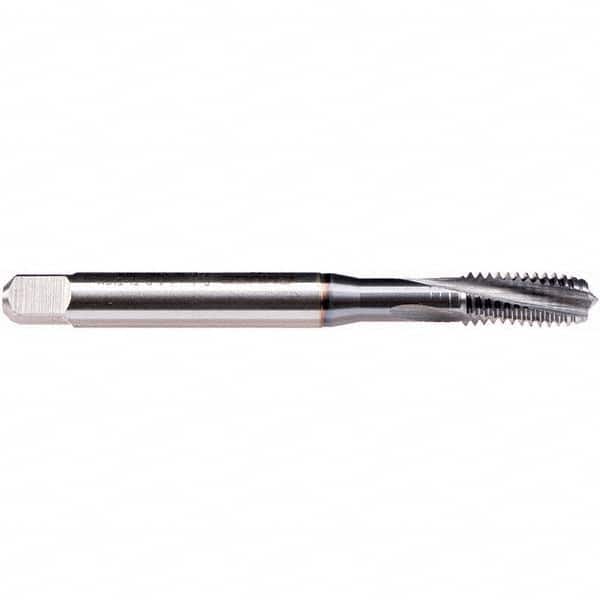

Spiral Flute Tap: #1-12, UNF, 4 Flute, Modified Bottoming, 3B Class of Fit, Cobalt, TICN Finish 1.102″ Thread Length, 5.512″ OAL, Right Hand Flute, Right Hand Thread, H5, Series CU459611
Item #: 18460808
Brand: Emuge
Model #: CU459611.5052
Product Specifications
| Material | Cobalt |
| Coating/Finish | TICN |
| Thread Size (Inch - 0 Decimals) | #1-12 |
| Thread Standard | UNF |
| Thread Limit | H5 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.1020 |
| Overall Length (Decimal Inch) | 5.5120 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 15 |
| Application | Through-Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.8000 |
| Square Size (Decimal Inch) | 0.6000 |
| Flute Style | Slow |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel; Titanium Alloy |
| Series | CU459611 |
| Coolant Through | No |
| Teeth per Inch | 12 |
| Number Of Flutes | 4 |
| Class Of Fit | 3B |
