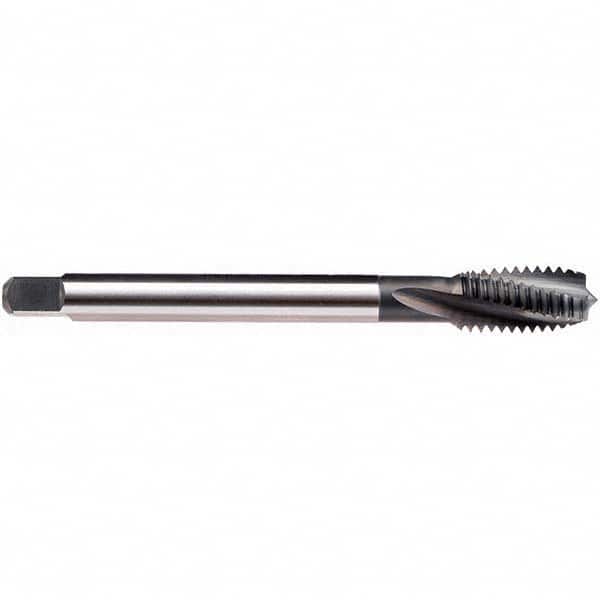

Spiral Flute Tap: 1-1/8-8, UN, Modified Bottoming, 2B Class of Fit, Cobalt, Nitride & Oxide Finish 1.575″ Thread Length, 7.087″ OAL, Right Hand Flute, Right Hand Thread, H7, Series CU456001
Item #: 18460816
Brand: Emuge
Model #: CU456001.5247
Product Specifications
| Material | Cobalt |
| Coating/Finish | Oxide; Nitride |
| Thread Size (Inch - 0 Decimals) | 1-1/8-8 |
| Thread Standard | UN |
| Thread Limit | H7 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.5750 |
| Overall Length (Decimal Inch) | 7.0870 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 15 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.8960 |
| Square Size (Decimal Inch) | 0.6000 |
| Flute Style | Slow |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel; Titanium Alloy |
| Series | CU456001 |
| Coolant Through | No |
| Teeth per Inch | 8 |
| Class Of Fit | 2B |
