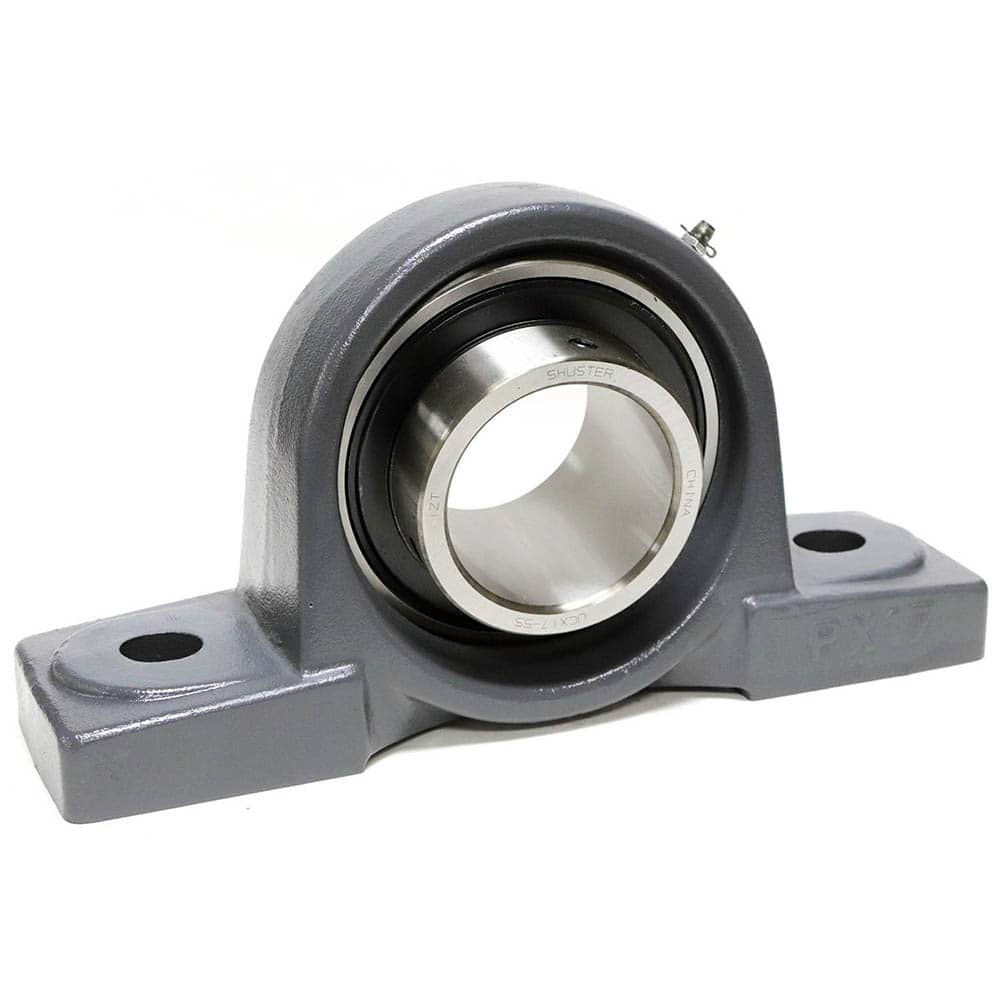

Shuster - UCPX08-24, 1-1/2" ID, 8-3/4" OAL x 113mm OAH, Medium Duty Ball Bearing Pillow Block
Item #: 18647313
Brand: Shuster
Model #: 08778579
Product Specifications
| Type | Ball Bearing Pillow Block Medieum Duty |
| Inside Diameter (Decimal Inch) | 1.5000 |
| Inside Diameter (Inch) | 1-1/2 |
| Width (Decimal Inch) | 2.6380 |
| Width (mm) | 67.00 |
| Overall Length (Inch) | 8-3/4 |
| Overall Length (mm) | 222.0000 |
| Overall Height (Decimal Inch) | 4.4380 |
| Overall Height (mm) | 113.00000 |
| Distance Between Mounting Hole Centers | 156.0000 |
| Distance Between Mounting Hole Centers | 6.141 |
| Material | Cast Iron Housing with Steel Bearing |
| Distance Between Base And Center | 58.7000 |
| Distance Between Base And Center | 2.3130 |
| Lock Type | Set Screw |
