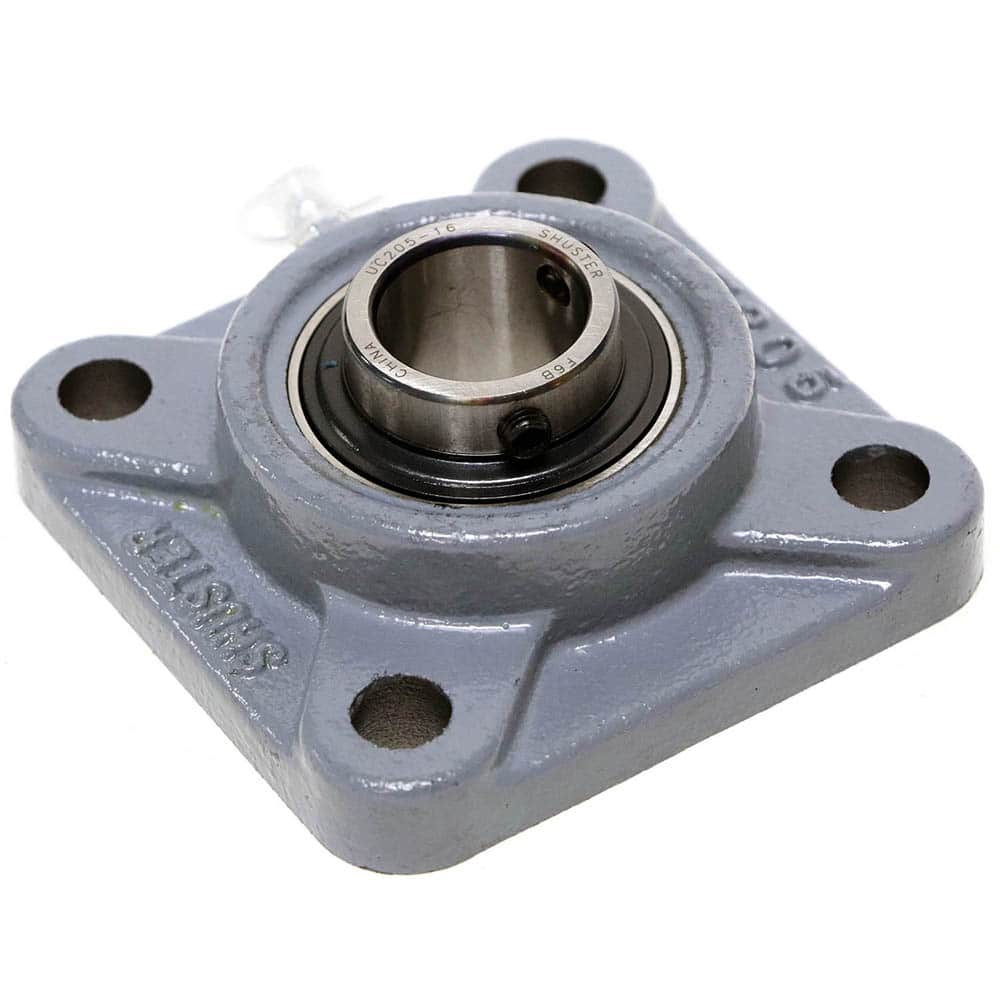

Shuster - UCFX05-16, 1" ID, 4-1/4" OAL x 4-1/4" OAH, Medium Duty 4-Bolt Flange Bearing
Item #: 18647354
Brand: Shuster
Model #: 08778573
Product Specifications
| Type | 4-Bolt Flange Bearing Mediun Duty |
| Inside Diameter (Decimal Inch) | 1.0000 |
| Inside Diameter (Inch) | 1 |
| Width (Decimal Inch) | 1.8930 |
| Width (mm) | 40.20 |
| Overall Length (Inch) | 4-1/4 |
| Overall Length (mm) | 108.0000 |
| Overall Height (Inch) | 4-1/4 |
| Overall Height (Decimal Inch) | 4.2500 |
| Overall Height (mm) | 108.00000 |
| Distance Between Mounting Hole Centers | 83.0000 |
| Distance Between Mounting Hole Centers | 3.265 |
| Material | Cast Iron Housing with Steel Bearing |
| Distance Between Base And Center | 18.0000 |
| Distance Between Base And Center | 0.7030 |
| Lock Type | Set Screw |
