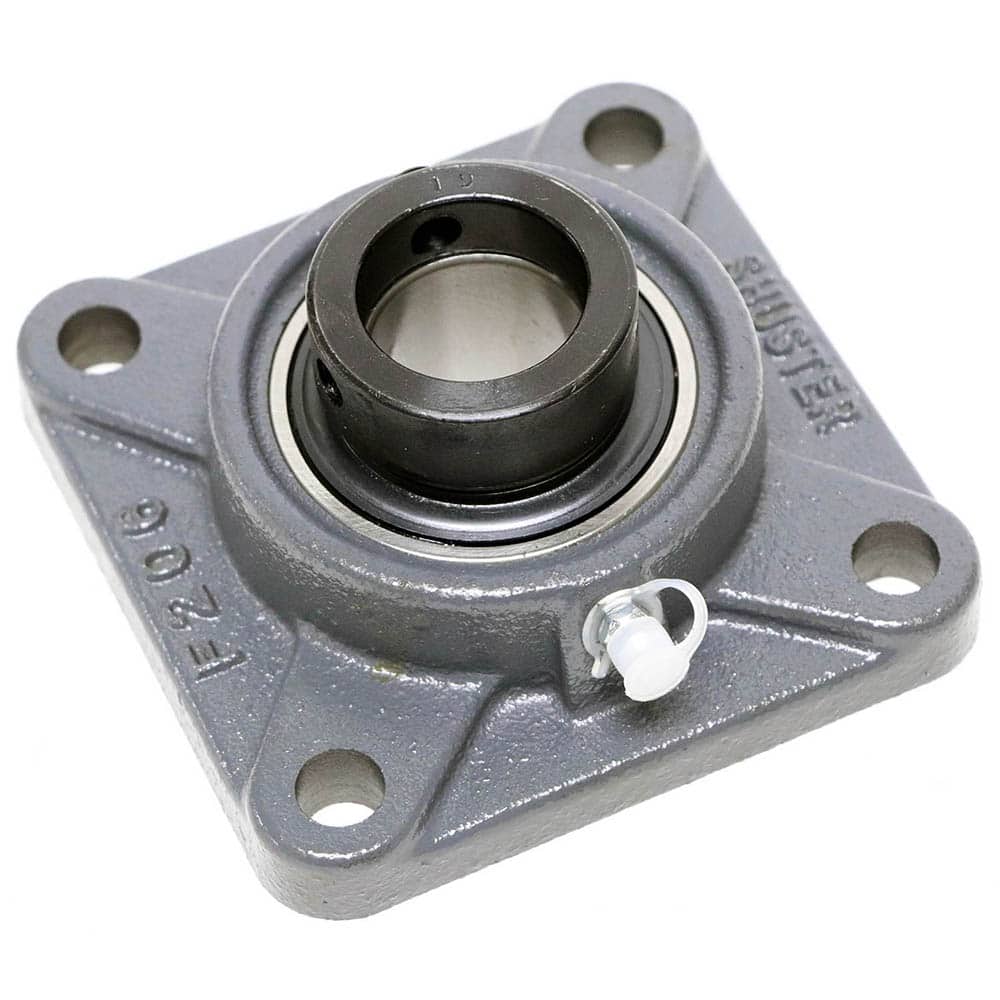

Shuster - NAF206-20, 1-1/4" ID, 4-1/4" OAL x 4-1/4" OAH, 4-Bolt Flange Bearing
Item #: 18647479
Brand: Shuster
Model #: 06156511
Product Specifications
| Type | 4-Bolt Flange Bearing |
| Inside Diameter (Decimal Inch) | 1.2500 |
| Inside Diameter (Inch) | 1-1/4 |
| Width (Decimal Inch) | 1.9060 |
| Width (mm) | 48.40 |
| Overall Length (Inch) | 4-1/4 |
| Overall Length (mm) | 108.0000 |
| Overall Height (Inch) | 4-1/4 |
| Overall Height (Decimal Inch) | 4.2500 |
| Overall Height (mm) | 108.00000 |
| Distance Between Mounting Hole Centers | 83.0000 |
| Distance Between Mounting Hole Centers | 3.250 |
| Material | Cast Iron Housing with Steel Bearing |
| Distance Between Base And Center | 18.0000 |
| Distance Between Base And Center | 0.7080 |
| Lock Type | Eccentric |
